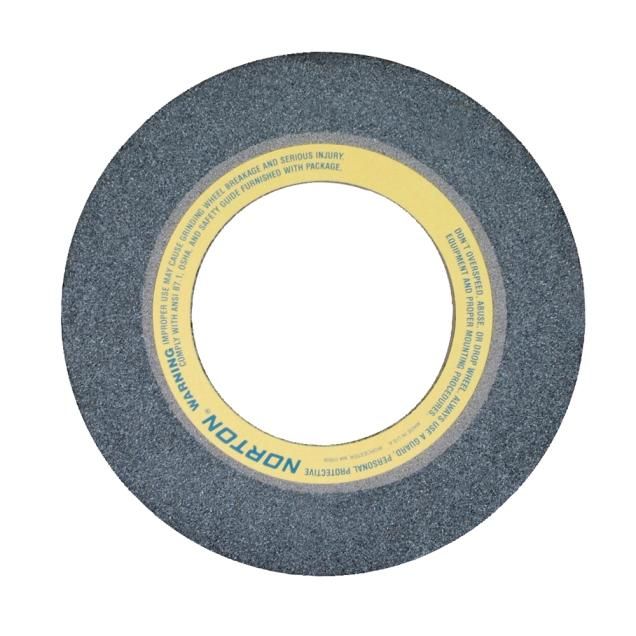

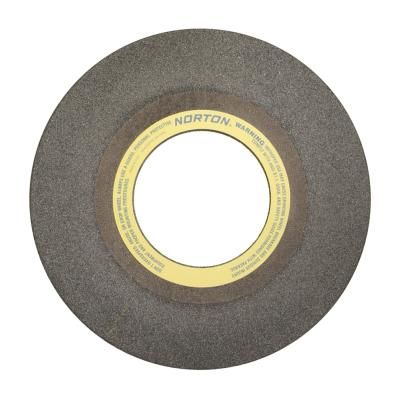

Norton 5ZF Type 01 Foundry Snagging Wheel

Upgrade your floorstand or swingframe grinder with this 5ZF ZA Type 01 floorstand snagging wheel. Created for all-around use, the wheel features a zirconia alumina abrasive that provides durable, long-lasting cutting and grinding, especially when used for low-pressure applications at a low horsepower. The wheel is designed with a high-speed steel ring that has a fine center and reinforced web for safe operation. Use the wheel with nearly any metal, including stainless, carbon steel, super alloys, iron and soft metals.

Abrasive ZA

Wheel Type Type 01

Features and benefits

Versatile, good quality zirconia alumina abrasive for foundry snagging and stock removal

These wheels have high-speed steel rings with fine centers and reinforcing webs for added safety

Ideal for lower horsepower or low-pressure applications

Ideal for numerous small jobs on 300 and 400 series stainless steels, soft and hard carbon steels, tool steels, titanium, super alloys, soft metals ( aluminum, brass, bronze, and copper), and cast, ductile and gray iron

Customise columns

Product SpecsDownload as CSV

Diameter	Arbor Hole	Thickness	Grit Size	Sanding Grade	Inventory Type	Max Operating Speed	External Spec	Abrasive	Wheel Type	Part Number
30 in	12 in	2 in	14 Grit	Extra Coarse	Stock	1595	5ZF14-RS	Zirconia Alumina	Type 01	69210467105
24 in	12 in	3 in	14 Grit	Extra Coarse	Stock	1990	5ZF14-QS	Zirconia Alumina	Type 01	69083166858
