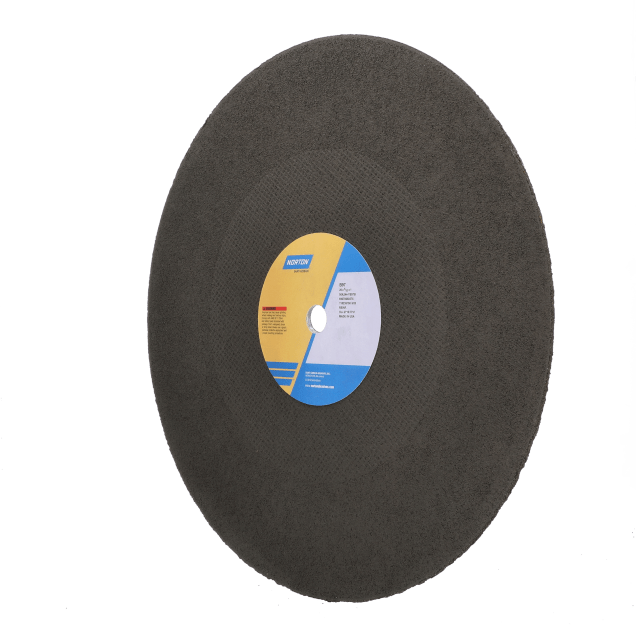

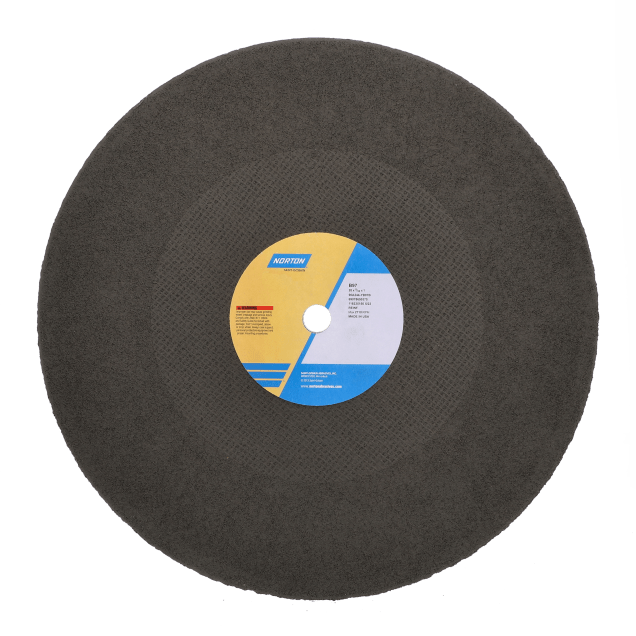

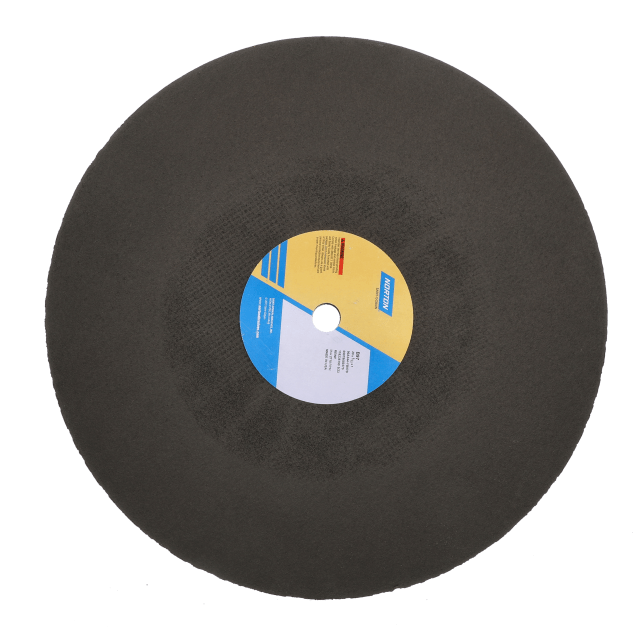

Norton B97 Reinforced Foundry Cut-off Wheel - Type 01

Best

Norton B97 90A Type 41 Reinforced Cut-Off Wheel

Achieve excellent cut rates on a broad range of metals with the ultra-hard B97 90A ZA blend Type 01/41 reinforced foundry cut-off wheel. Formulated with a premium 90A blend of aluminum oxide and zirconia abrasives, this durable cut-off wheel efficiently slices through titanium, super alloys, aluminum, brass, bronze and copper; cast, ductile and gray iron; and 300- and 400-series stainless, hard and soft carbon, and tool steels. Featuring a high-performance B79N bond and fully reinforced on both sides with fiberglass, this cut-off wheel resists side pressure and bending when paired with your chop saw or chop stroke machine.

Abrasive ZA Blend

Wheel Type Type 01/41

Features and benefits

Premium 90A abrasive combines aluminum oxide and zirconia to excel at foundry cut-off applications including 300 and 400 series stainless, hard and soft carbon steels, tool steels, titanium, and super alloys, and cast, ductile and gray iron and more

High performance B97N bond for maximum performance in the most demanding applications, with full diameter fiberglass reinforcement on each side of wheel, to provide greatest possible resistance to side pressure and bending

Bond and reinforcement engineered to foundry market machine parameters and materials; full diameter pieces of reinforcement on the side of the wheel. Offers greatest possible resistance to side pressure and bending

Optimal bond hardness creates an excellent blend of cut rate and life

Customise columns

Product SpecsDownload as CSV

Diameter	Arbor Hole	Thickness	Grit Size	Sanding Grade	Inventory Type	Max Operating Speed	External Spec	Abrasive	Wheel Type	Part Number
16 in	1 in	5/32 in	24 Grit	Extra Coarse	Stock	3820	90A244-TB97N	Zirconia Alumina Blend	Type 01/41	66253422205
30 in	1-3/4 in	1/4 in	20 Grit	Extra Coarse	Stock	1830	90A204-ZB97B	Zirconia Alumina Blend	Type 01/41	69210450387
30 in	1-3/4 in	1/4 in	20 Grit	Extra Coarse	Stock	1810	CM-CO-T1A	Zirconia Alumina Blend	Type 01/41	69210450386
30 in	1-3/4 in	1/4 in	24 Grit	Coarse	Stock	1810	90A244-TB97B	Zirconia Alumina Blend	Type 01/41	69210422211
24 in	1-3/4 in	7/32 in	20 Grit	Extra Coarse	Stock	2260	90A204-YB97B	Zirconia Alumina Blend	Type 01/41	69083150382
24 in	1-3/4 in	7/32 in	20 Grit	Coarse	Stock	2260	90A204-VB97B	Zirconia Alumina Blend	Type 01/41	69083108034
20 in	1 in	5/32 in	24 Grit	Extra Coarse	Stock	2710	90A244-YB97N	Zirconia Alumina Blend	Type 01/41	69078650377
20 in	1 in	5/32 in	24 Grit	Extra Coarse	Stock	2710	90A244-YB97B	Zirconia Alumina Blend	Type 01/41	69078650375
20 in	1 in	5/32 in	24 Grit	Coarse	Stock	2710	90A244-TB97N	Zirconia Alumina Blend	Type 01/41	69078622209
