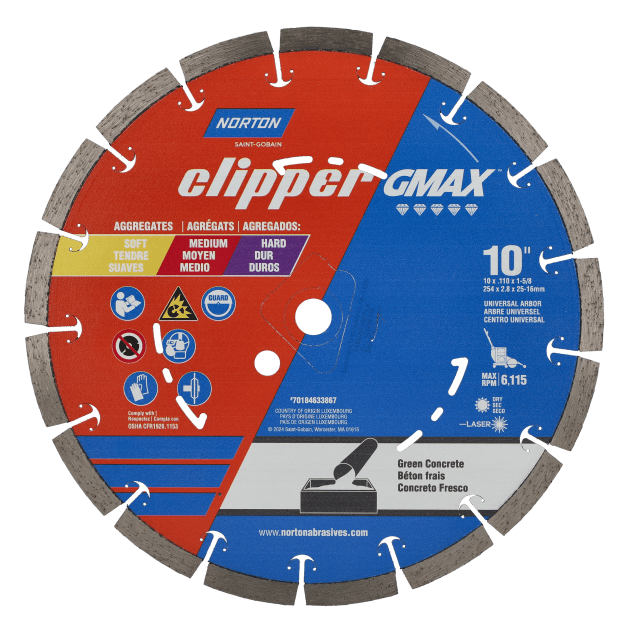

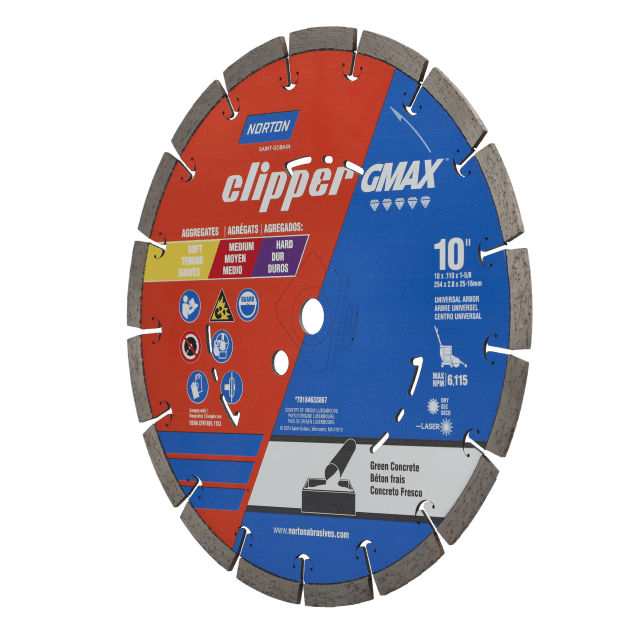

Norton Clipper GMAX Segmented Rim Green Concrete Walk-Behind Saw Diamond Blade
Cutting Condition
Dry
Features and benefits
Anchor slot gullets prevent cracking while keeping the blade cool
Varying depth anchor slot reduces vibration for smoother cut and harmonically balance the core
Exclusive universal arbor will fit most saws including Soff-Cut with triple knockouts
Unique segment specifications designed for specific aggregate hardness and type
Part Specifications
Where to BuyProduct SpecsDownload as CSV
|
Diameter
|
Arbor Hole
|
Total Height
|
Inventory Type
|
Segment Length
|
Segment Thickness
|
Segments
|
Segment Attachment
|
Part Number
|
|---|---|---|---|---|---|---|---|---|
| 10 in | 1.000 in | .275 in | Stock | 1.575 in | .110 in | 16 | Laser | 70184684508 |
| 6 in | .625 in | .395 in | Stock | 1.575 in | .110 in | 10 | Laser | 70184633868 |
| 10 in | .625 in | .395 in | Stock | 1.575 in | .110 in | 17 | Laser | 70184633867 |
| 9 in | .875 in | .275 in | Stock | 1.575 in | .110 in | 16 | Laser | 70184675125 |
Product Uses
Applications
Materials
Machines
