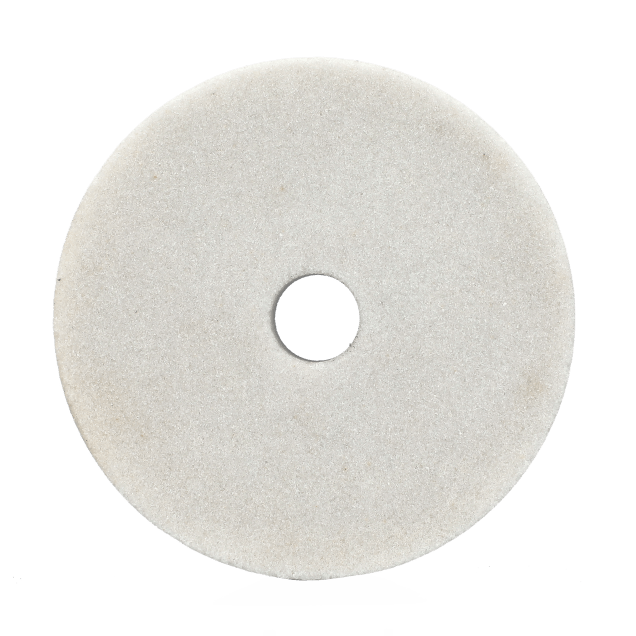

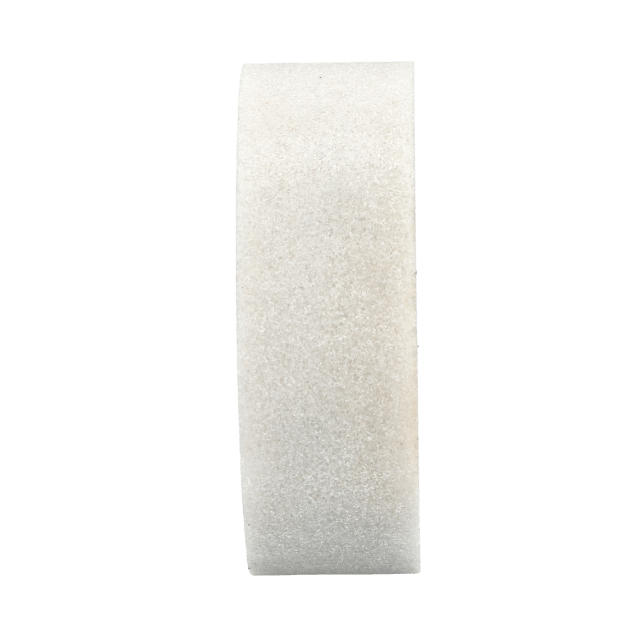

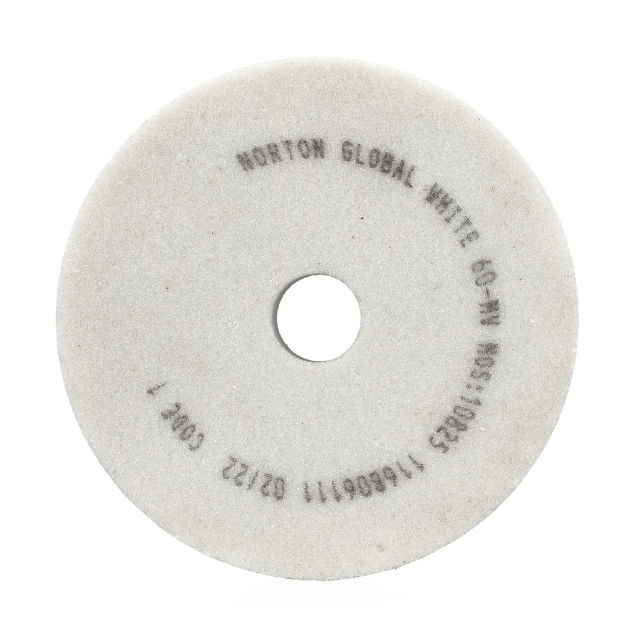

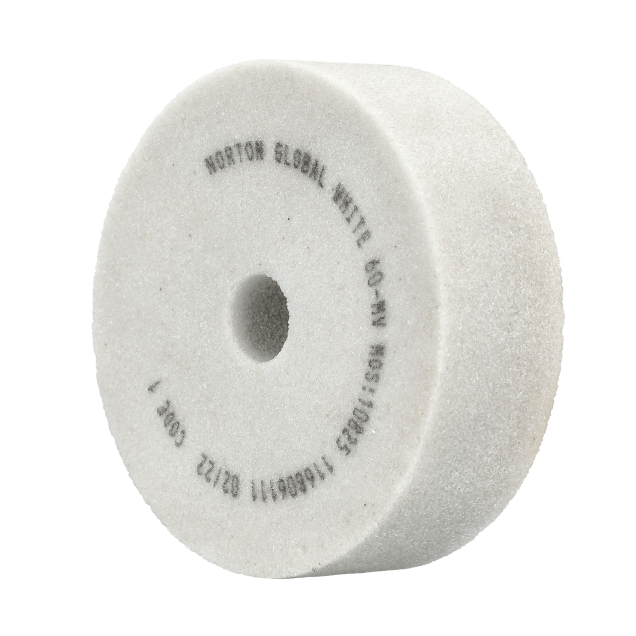

Norton Global 38A Type 01 Internal Grinding Wheel


A smart choice for burn-free truing and dressing applications, the Global 38A AO Type 01 dressing wheel combines a friable aluminum oxide abrasive with a vitrified bond to maximize the longevity of the abrasive. Designed for use on soft carbon steels, tool steels and super alloys with brake-controlled truing devices, the wheel offers reliability, accuracy and balance. The wheel dresses 80-, 100- and 120 grit resin and vitrified diamond and CBN grinding wheels.

Icon of a abrasive
Abrasive AO
Icon of a wheel
Wheel Type Type 01

Features and benefits

Type 01 straight dressing wheels with the most friable aluminum oxide abrasive for cool and burn-free truing and dressing

The most versatile vitrified bond, engineered to maximize the life of aluminum oxide abrasives

Used on brake controlled truing device to dress 80. 100, and 120 grit resin and vitrified diamond and cBN wheels

Consistent quality for excellent balance and dimensional accuracy time after time

Part Specifications

Where to Buy
Customise columns
Product SpecsDownload as CSV
Diameter
Arbor Hole
Thickness
Grit Size
Sanding Grade
Inventory Type
Max Operating Speed
External Spec
Abrasive
Wheel Type
Part Number
3 in 1/2 in 1 in 60 Grit Medium Stock 10825 WHITE 60-MV Aluminum Oxide Type 01 66243521360

Product Uses
