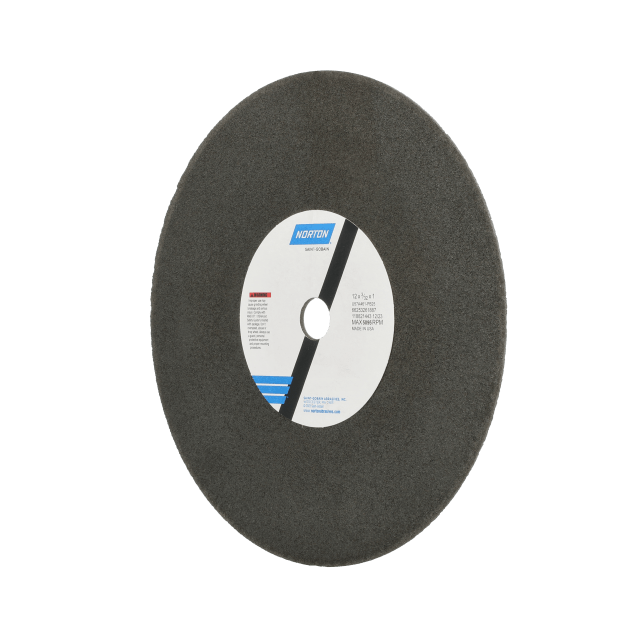

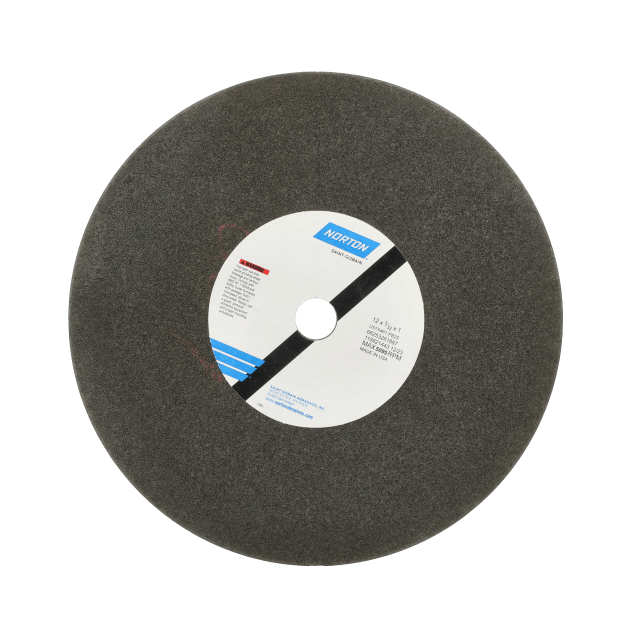

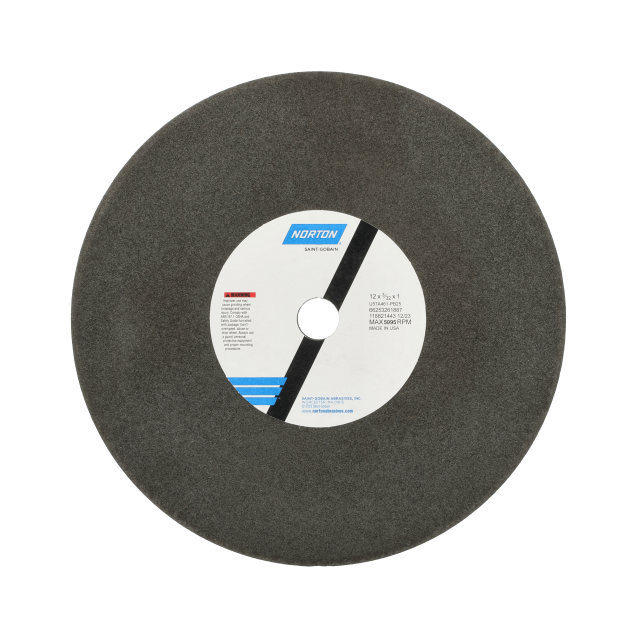

Norton Toolroom Cut-off Wheel - Type 01 - 12 X 3-32 X 1

Better

Norton U57A Type 41 Non-Reinforced Cut-Off Wheel

Purpose-built for fixed-base machines and securely clamped work, this Norton U57A AO Type 01/41 non-reinforced foundry cut-off wheel is meant for a chop saw or chop stroke machine in your high-production foundry. A versatile, free-cutting resin bond offers dry cutting and a balance between cut rate and lifespan. The premium aluminum oxide offers good performance on 300 and 400 series stainless steel; cast, grey and ductile iron; soft metals, such as aluminum, brass and bronze; hard and soft carbon steels; titanium; and super alloys.

Abrasive AO

Wheel Type Type 01/41

Features and benefits

Premium aluminum oxide grain for good performance on all steel and cast iron applications

A versatile, free-cutting, more durable resin bond, Ideal for dry cutting metal in high production runs where a good blend of cut rate and life is needed

Bond and reinforcement engineered to foundry market machine parameters and materials

This wheel is zone reinforced around the center hole only so considered non-reinforced; it must be used on a fixed-base machine where work is securely clamped

Customise columns

Product SpecsDownload as CSV

Diameter	Arbor Hole	Thickness	Grit Size	Sanding Grade	Inventory Type	Max Operating Speed	External Spec	Abrasive	Wheel Type	Part Number
12 in	1 in	3/32 in	46 Grit	Coarse	Stock	5095	U57A461-PB25	Aluminum Oxide	Type 01/41	66253261887
20 in	1 in	1/8 in	30 Grit	Extra Coarse	Stock	2715	U57A304-VB25W	Aluminum Oxide	Type 01/41	69078665497
