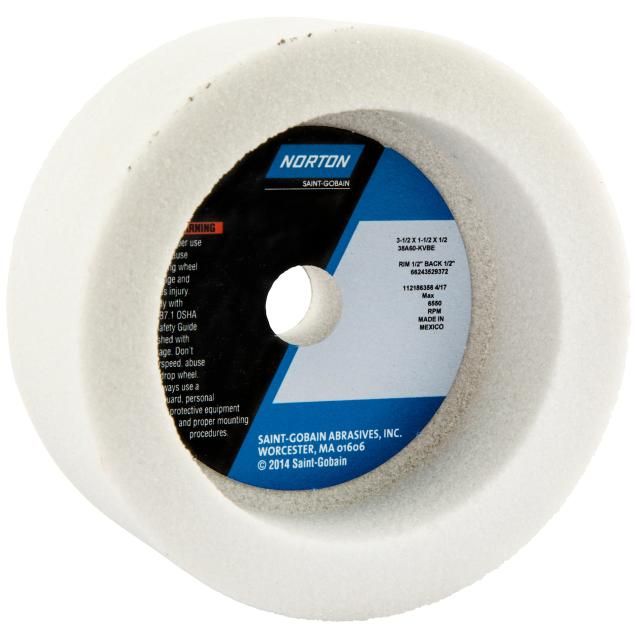

Norton 38A Type 06 Toolroom Wheel
Features and benefits
Type 06 straight cup wheels with the most friable aluminum oxide abrasive for cool and burn-free cutting toolroom applications with light to moderate feed rates
The most versatile vitrified bond, especially recommended for CNC cutting tool machines and tool and cutter machines on hard and very heat sensitive high speed tool steels; cool fast cutting
Excellent balance and dimensional accuracy time after time
Good general purpose choice for consistent performance at an economical price
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Back Thickness
|
Rim Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Face Profile
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 mm | 20 mm | 50 mm | 13 mm | 10 mm | 80 Grit | Medium | Stock | 6550 | 38A80-JVBE | - | Aluminum Oxide | Type 06 | 66243530429 |
| 5 in | 1-1/4 in | 1-1/2 in | 3/8 in | 3/8 in | 60 Grit | Medium | Stock | 4585 | 38A60-KVBE | Y Face | Aluminum Oxide | Type 06 | 66252830846 |
| 5 in | 1-1/4 in | 1-1/2 in | 3/8 in | 3/8 in | 46 Grit | Coarse | Stock | 4585 | 38A46-KVBE | Y Face | Aluminum Oxide | Type 06 | 66252830842 |
| 4 in | 20 mm | 2 in | 1/2 in | 3/8 in | 80 Grit | Medium | Stock | 5730 | 38A80-JVBE | - | Aluminum Oxide | Type 06 | 66243530523 |
| 4 in | 1-1/4 in | 1-1/2 in | 1/2 in | 1/2 in | 60 Grit | Medium | Stock | 5730 | 38A60-KVBE | - | Aluminum Oxide | Type 06 | 66243530221 |
| 3-1/2 in | 1/2 in | 1-1/2 in | 1/2 in | 1/2 in | 60 Grit | Medium | Stock | 6550 | 38A60-KVBE | - | Aluminum Oxide | Type 06 | 66243529372 |
| 6 in | 1-1/4 in | 2 in | 1/2 in | 1/2 in | 60 Grit | Medium | Stock | 3820 | 38A60-KVBE | - | Aluminum Oxide | Type 06 | 66252838486 |
| 10 in | 1-1/2 in | 4 in | 1 in | 1-1/4 in | 46 Grit | Coarse | Stock | 2295 | 38A46-IVBE | - | Aluminum Oxide | Type 06 | 66253161797 |
