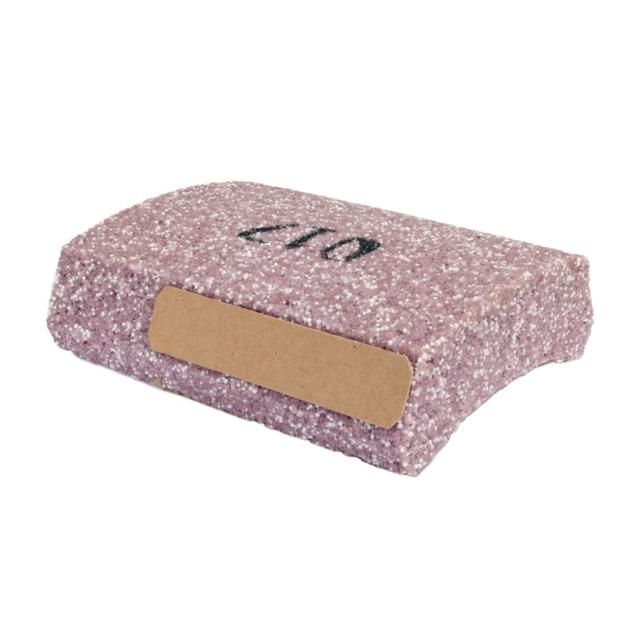

Norton 86A Type 31 Surface Grinding Segment

Achieve cooler cuts and consistent results with the sharper aluminum oxide abrasive grain on this 86A AO surface grinding segment designed for Hanchett, Mattison, Norton, Sterling, Abrasive Associates, Cortland and Cortland Bonus Grind chucks. With a porous VBEP vitrified bond, this segment increases chip clearance and maximizes coolant flow while reducing loading for quality results. Cooler cuts make it an ideal choice for heat-sensitive jobs. It is particularly suited for precision stock removal and vertical spindle surface grinding on many materials, including 400-series stainless, hard and soft carbon steels, tool steels, aluminum, cast iron and gray iron.

Abrasive AO

Wheel Type Type 31

Features and benefits

Sharper aluminum oxide abrasive grain delivers cooler-cutting, consistent performance

The porous VBEP vitrified bond increases chip clearance and maximizes coolant flow, reduces loading, and is cool cutting in heat-sensitive applications

For use in Hanchett, Mattison and Norton, Sterling, and Abrasive Associates, and Cortland and Cortland Bonus Grind chucks on surface grinding machines

Excellent choice for vertical spindle surface grinding stock removal to precision tolerance flat stock production on 400 series stainless, hard carbon steels, soft carbon steels, tool steels, aluminum, cast iron, ductile iron, gray iron

Customise columns

Product SpecsDownload as CSV

Length	Width	Thickness	Grit Size	Sanding Grade	Inventory Type	External Spec	Abrasive	Wheel Type	Part Number
6 in	11-1/4 in	2-1/4 in	46 Grit	Coarse	Stock	86A46-D12VBEP	Aluminum Oxide	Type 31	61463650442
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	86A30-G12VBEP	Aluminum Oxide	Type 31	61463650289
8 in	11-1/4 in	3 in	30 Grit	Coarse	MTO	86A30-E12VBEP	Aluminum Oxide	Type 31	61463650301
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	86A30-F12VBEP	Aluminum Oxide	Type 31	61463650287
6 in	11-1/4 in	2-1/4 in	24 Grit	Coarse	Stock	86A24-G12VBEP	Aluminum Oxide	Type 31	61463650282
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	86A30-E12VBEP	Aluminum Oxide	Type 31	61463650285
6 in	11-1/4 in	2-1/4 in	24 Grit	Coarse	Stock	86A24-E12VBEP	Aluminum Oxide	Type 31	61463650279
6 in	5 in	1-1/2 in	30 Grit	Coarse	Stock	86A30-G12VBEP	Aluminum Oxide	Type 31	61463650275
6 in	5 in	1-1/2 in	30 Grit	Coarse	Stock	86A30-F12VBEP	Aluminum Oxide	Type 31	61463650273
