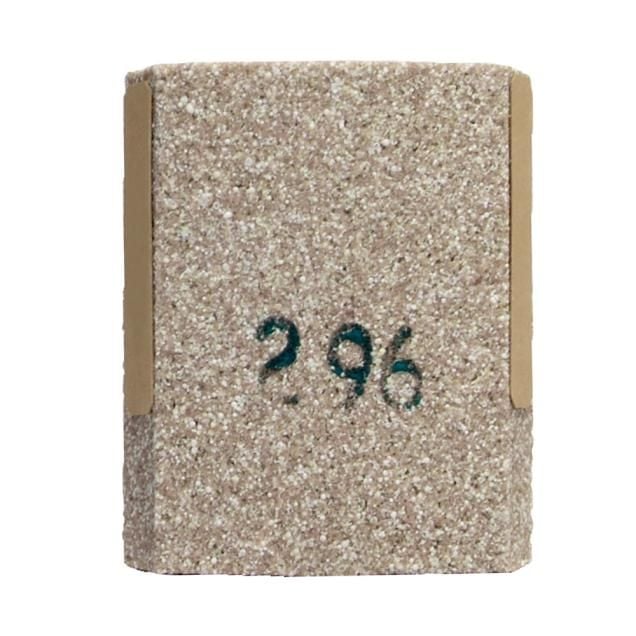

Norton Quantum 3NQP Type 31 Surface Grinding Segment
Abrasive
CA
Wheel Type
Type 31
Features and benefits
Revolutionary ceramic grain shape produces highest productivity with the lowest total grinding costs; 33% to 100% longer life versus competitive ceramic products, 30% plus higher metal removal rate, with 15% plus lower threshold power
The porous VSP vitrified bond increases chip clearance and maximizes coolant flow, reduces loading, and is cool cutting in heat-sensitive applications
For use in Cortland and Cortland Bonus Grind chucks, on old and new surface grinding machines
Exceptional choice for all low, medium, and high-force stock removal and precision applications ranging from cast iron, to stainless steel and hard-to-grind alloys
Part Specifications
Where to BuyProduct SpecsDownload as CSV
|
Length
|
Width
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|
| 6 in | 5 in | 1-1/2 in | 30 Grit | Coarse | Stock | 3NQP30-F12VSP | Ceramic Alumina | Type 31 | 61463677786 |
| 8 in | 11-1/4 in | 3 in | 30 Grit | Coarse | Stock | 3NQP30-E12VSP | Ceramic Alumina | Type 31 | 66253122614 |
| 6 in | 11-1/4 in | 2-1/4 in | 36 Grit | Coarse | Stock | 3NQP36-G12VSP | Ceramic Alumina | Type 31 | 66253251527 |
| 6 in | 5 in | 1-1/2 in | 30 Grit | Coarse | Stock | 3NQP30-G12VSP | Ceramic Alumina | Type 31 | 66253251526 |
| 8 in | 11-1/4 in | 3 in | 30 Grit | Coarse | Stock | 3NQP30-G12VSP | Ceramic Alumina | Type 31 | 66253233120 |
| 8 in | 11-1/4 in | 2-1/4 in | 30 Grit | Coarse | Stock | 3NQP30-F12VSP | Ceramic Alumina | Type 31 | 66253238276 |
| 8 in | 11-1/4 in | 3 in | 30 Grit | Coarse | Stock | 3NQP30-F12VSP | Ceramic Alumina | Type 31 | 69083156473 |
| 8 in | 11-1/4 in | 2-1/4 in | 30 Grit | Coarse | MTO | 3NQP30-E12VSP | Ceramic Alumina | Type 31 | 66253225563 |
Product Uses
Industries
Applications
Materials
Machines
