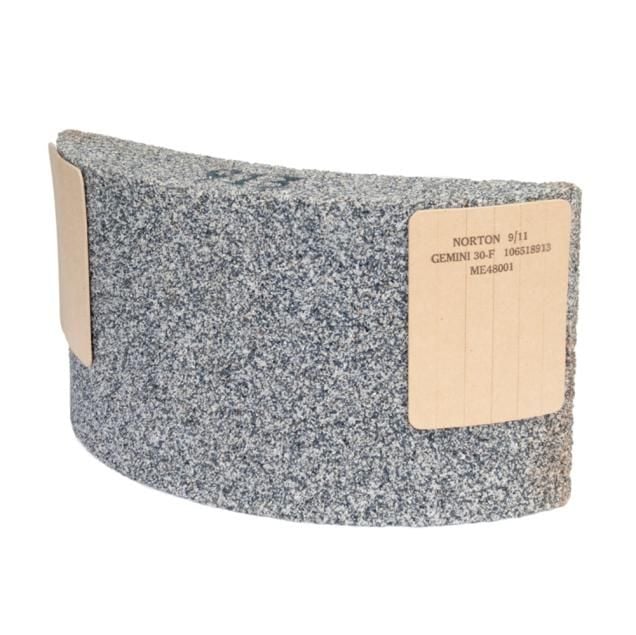

Norton Gemini 53A Type 31 Surface Grinding Segment

Harness the grinding power of specially blended aluminum oxide abrasive on the Gemini 53A AO surface grinding segment to handle versatile surface grinding jobs. Thanks to a porous vitrified bond, this segment allows for cool cuts on your heat-sensitive applications with increased chip clearance, maximized coolant flow and reduced loading for quality results. You get good performance at an economical value for your grinding surface machines with Hanchett, Mattison, Norton, Cortland and Cortland Bonus Grind chucks. This grinding segment works on a variety of materials, especially soft carbon steels and tool steels, to tackle a range of jobs.

Abrasive AO

Wheel Type Type 31

Features and benefits

Specially blended aluminum oxide abrasive for many surface grinding applications

The porous vitrified bond increases chip clearance and maximizes coolant flow, reduces loading, and is cool cutting in heat-sensitive applications

For use in Hanchett, Mattison, and Norton, and Cortland and Cortland Bonus Grind chucks on surface grinding machines

Good performance and economical value when a broad variety of parts are ground on one machine, particularly soft carbon steels and tool steels

Customise columns

Product SpecsDownload as CSV

Length	Width	Thickness	Grit Size	Sanding Grade	Inventory Type	External Spec	Abrasive	Wheel Type	Part Number
8 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-G	Aluminum Oxide	Type 31	69936699717
8 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-E	Aluminum Oxide	Type 31	69936699712
6 in	11 in	2-1/8 in	30 Grit	Coarse	MTO	GEMINI 30-F	Aluminum Oxide	Type 31	61463677785
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-H	Aluminum Oxide	Type 31	66243447588
8 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-H	Aluminum Oxide	Type 31	66243447591
8 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-I	Aluminum Oxide	Type 31	66243447592
8 in	11-1/4 in	3 in	30 Grit	Coarse	Stock	GEMINI 30-H	Aluminum Oxide	Type 31	66243447594
8 in	11-1/4 in	3 in	30 Grit	Coarse	Stock	GEMINI 30-I	Aluminum Oxide	Type 31	66243447595
6 in	5 in	1-1/2 in	30 Grit	Coarse	Stock	GEMINI 30-E	Aluminum Oxide	Type 31	66253050295
6 in	5 in	1-1/2 in	30 Grit	Coarse	Stock	GEMINI 30-G	Aluminum Oxide	Type 31	66253050299
8 in	11-1/4 in	3 in	30 Grit	Coarse	Stock	GEMINI 30-K	Aluminum Oxide	Type 31	66253344077
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-E	Aluminum Oxide	Type 31	69936699706
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-F	Aluminum Oxide	Type 31	69936699709
6 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-G	Aluminum Oxide	Type 31	69936699710
8 in	11-1/4 in	2-1/4 in	30 Grit	Coarse	Stock	GEMINI 30-F	Aluminum Oxide	Type 31	69936699716
8 in	11-1/4 in	3 in	30 Grit	Coarse	Stock	GEMINI 30-E	Aluminum Oxide	Type 31	69936699725
8 in	11-1/4 in	3 in	30 Grit	Coarse	Stock	GEMINI 30-F	Aluminum Oxide	Type 31	69936699727
8 in	11-1/4 in	3 in	30 Grit	Coarse	Stock	GEMINI 30-G	Aluminum Oxide	Type 31	69936699728
