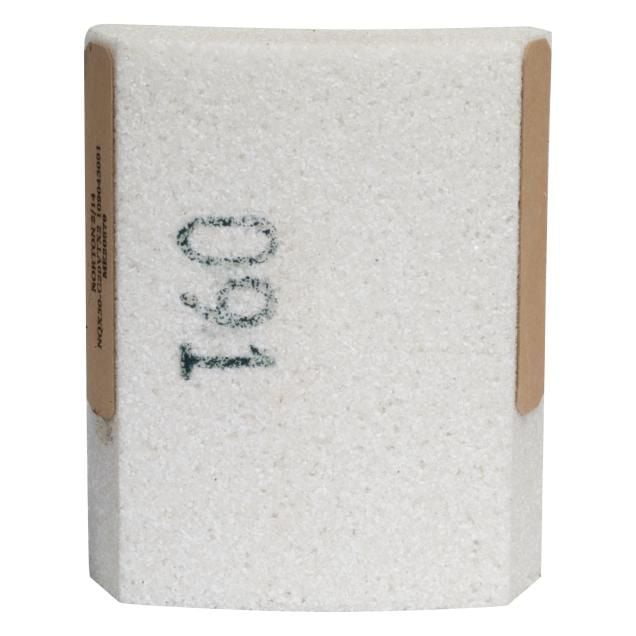

Norton Quantum X 5NQX Type 31 Surface Grinding Segment
Features and benefits
Revolutionary ceramic grain shape produces highest productivity with the lowest total grinding costs; 33% to 100% longer life versus competitive ceramic products, 30% plus higher metal removal rate, with 15% plus lower threshold power
Vitrium3 bond is the strongest bond in the Norton portfolio, with patented pore-induced construction; exceptionally cool, burn-free cutting even on tough, heat-sensitive super alloys
For use in Hanchett Mattison Norton, Cortland, and Cortland Bonus Grind chucks on surface grinding machines
Excels on all low-, medium- and high-force applications; the best choice for stock removal to precision jobs on hard-to-grind aerospace alloys and large areas of contact; exceptional form and corner-holding
Part Specifications
Where to Buy|
Length
|
Width
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|
| 8 in | 11-1/4 in | 2-1/4 in | 30 Grit | Coarse | Stock | QUANTUMX 30-F | Ceramic Alumina | Type 31 | 66253387811 |
| 8 in | 11-1/4 in | 3 in | 30 Grit | Coarse | Stock | QUANTUMX 30-E | Ceramic Alumina | Type 31 | 66253387808 |
| 8 in | 11-1/4 in | 3 in | 30 Grit | Coarse | Stock | QUANTUMX 30-F | Ceramic Alumina | Type 31 | 66253387809 |
| 8 in | 11-1/4 in | 2-1/4 in | 30 Grit | Coarse | Stock | QUANTUMX 30-E | Ceramic Alumina | Type 31 | 66253387810 |
| 8 in | 11-1/4 in | 3 in | 20 Grit | Coarse | Stock | QUANTUMX 20-G | Ceramic Alumina | Type 31 | 66253350623 |
| 8 in | 11-1/4 in | 3 in | 20 Grit | Coarse | Stock | QUANTUMX 20-H | Ceramic Alumina | Type 31 | 66253350624 |
| 8 in | 11-1/4 in | 2-1/4 in | 20 Grit | Coarse | Stock | QUANTUMX 20-G | Ceramic Alumina | Type 31 | 66253350612 |
| 8 in | 11-1/4 in | 2-1/4 in | 20 Grit | Coarse | Stock | QUANTUMX 20-H | Ceramic Alumina | Type 31 | 66253350615 |
| 6 in | 11-1/4 in | 2-1/4 in | 20 Grit | Coarse | Stock | QUANTUMX 20-H | Ceramic Alumina | Type 31 | 66253350608 |
| 6 in | 11-1/4 in | 2-1/4 in | 20 Grit | Coarse | Stock | QUANTUMX 20-G | Ceramic Alumina | Type 31 | 66253350607 |
| 6 in | 5 in | 1-1/2 in | 20 Grit | Coarse | Stock | QUANTUMX 20-G | Ceramic Alumina | Type 31 | 66253350603 |
Product Uses
Industries
Applications
Materials
Machines
