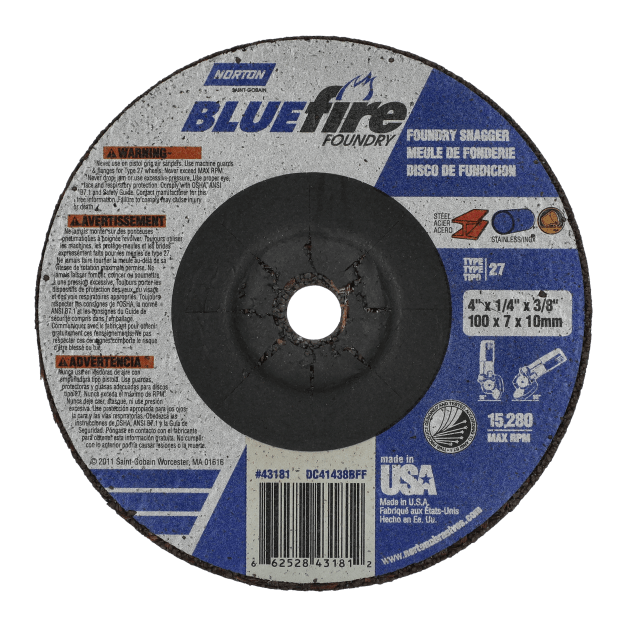

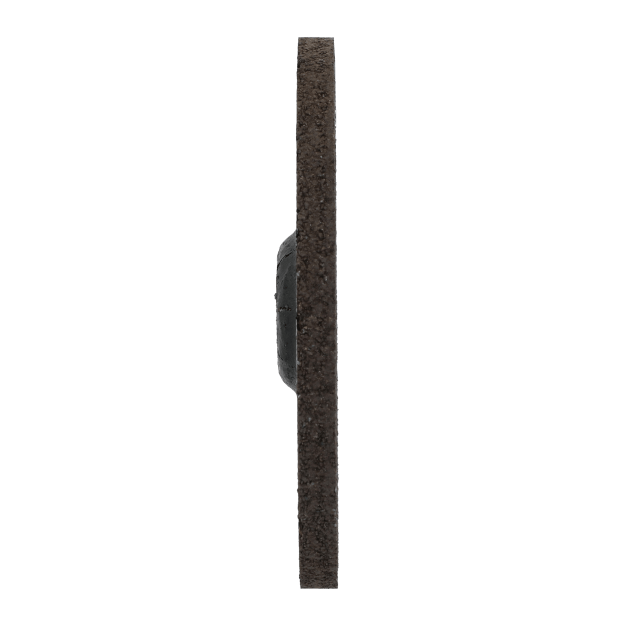

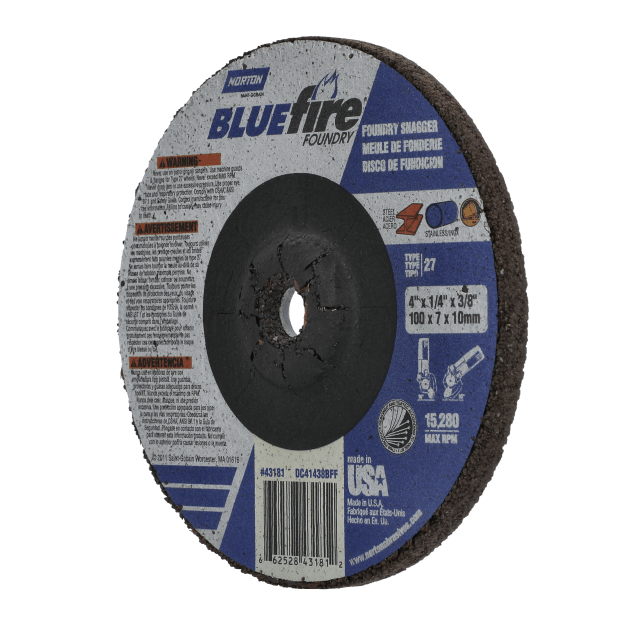

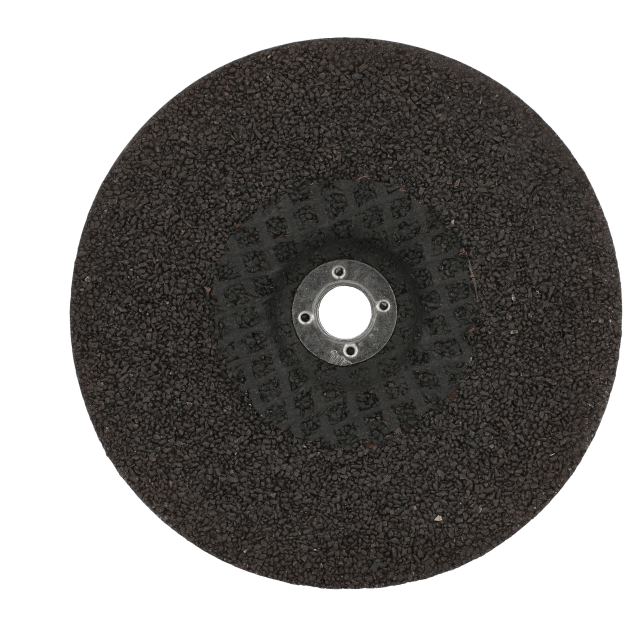

Norton BlueFire ZA/SC Right Angle Type 27 Grinding Wheel Foundry
Features and benefits
A blend of the most advanced zirconia alumina abrasive with premium silicon carbide grain for 2-3 times the life of aluminum oxide wheels
1/4 inch thick depressed center wheel designed to be used at a 30 degree angle on a right angle grinder for light- to heavy-duty grinding on the bottom/face of the wheel
Designed and reinforced for aggressive foundry applications like cleaning parting lines, pads, and slag
Excellent blend of performance and price on a wide range of materials, including 400 series stainless, hard carbon steels, and soft carbon steels
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Thread Size
|
Abrasive
|
Wheel Type
|
Packaging Quantity
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 in | 5/8 in | 1/4 in | 20 Grit | Extra Coarse | Stock | 6600 | BLUEFIRE FOUNDRY | 5/8 in - 11 | Zirconia Alumina/Silicon Carbide | Type 27 | 10 | 66252843261 |
| 9 in | 5/8 in | 1/8 in | 24 Grit | Extra Coarse | Stock | 6600 | BLUEFIRE FOUNDRY | 5/8 in - 11 | Zirconia Alumina/Silicon Carbide | Type 27 | 10 | 66252843240 |
| 4-1/2 in | 5/8 in | 1/4 in | 24 Grit | Extra Coarse | Stock | 13580 | BLUE FIRE FOUNDRY | 5/8 in - 11 | Zirconia Alumina/Silicon Carbide | Type 27 | 10 | 66252843207 |
| 7 in | 7/8 in | 1/8 in | 24 Grit | Coarse | Stock | 8600 | BLUE FIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 20 | 66252915526 |
| 4-1/2 in | 7/8 in | 1/8 in | 24 Grit | Extra Coarse | Stock | 13580 | BLUE FIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 25 | 66252843204 |
| 7 in | 5/8 in | 1/8 in | 24 Grit | Extra Coarse | Stock | 8600 | BLUEFIRE FOUNDRY | 5/8 in - 11 | Zirconia Alumina/Silicon Carbide | Type 27 | 10 | 66252843232 |
| 9 in | 7/8 in | 1/8 in | 24 Grit | Extra Coarse | Stock | 6600 | BLUE FIRE | - | Zirconia Alumina/Silicon Carbide | Type 27 | 20 | 66252843238 |
| 9 in | 7/8 in | 1/4 in | 20 Grit | Extra Coarse | Stock | 6600 | BLUEFIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 20 | 66252843260 |
| 4 in | 5/8 in | 1/4 in | 24 Grit | Coarse | Stock | 15280 | BLUE FIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 25 | 66252843180 |
| 4 in | 3/8 in | 1/4 in | 24 Grit | Extra Coarse | Stock | 15280 | BLUE FIRE | - | Zirconia Alumina/Silicon Carbide | Type 27 | 25 | 66252843181 |
| 4-1/2 in | 7/8 in | 1/4 in | 24 Grit | Coarse | Stock | 13580 | BLUE FIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 25 | 66252843205 |
| 7 in | 7/8 in | 1/4 in | 20 Grit | Extra Coarse | Stock | 8600 | BLUEFIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 20 | 66252843230 |
| 7 in | 5/8 in | 1/4 in | 20 Grit | Coarse | Stock | 8600 | BLUEFIRE FOUNDRY | - | Zirconia Alumina/Silicon Carbide | Type 27 | 10 | 66252843231 |
Product Uses
Applications
Materials
Machines
