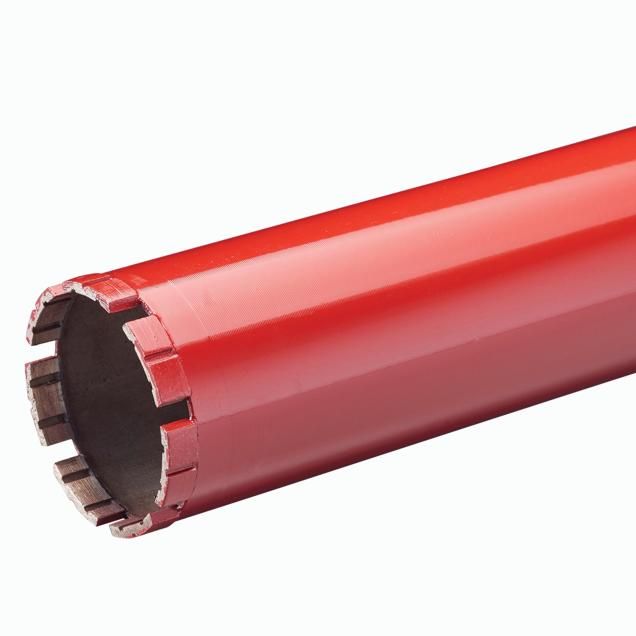

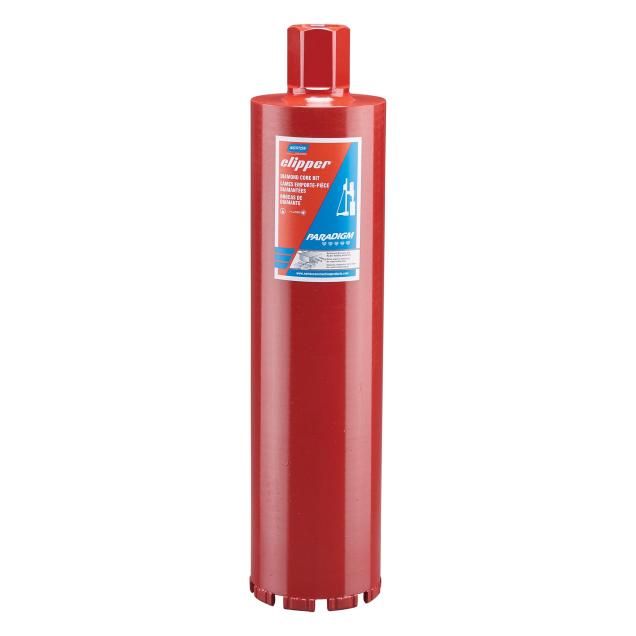

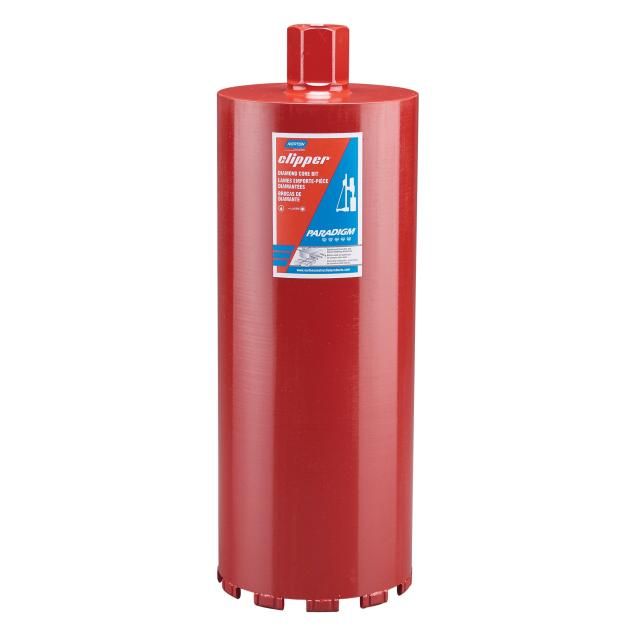

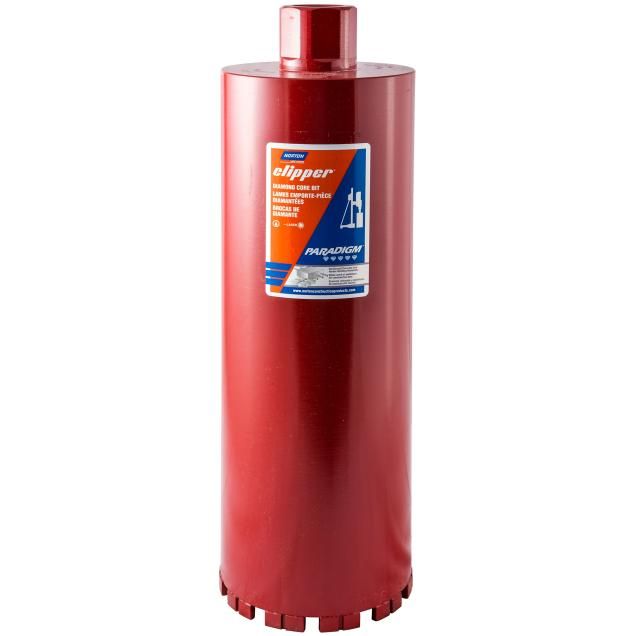

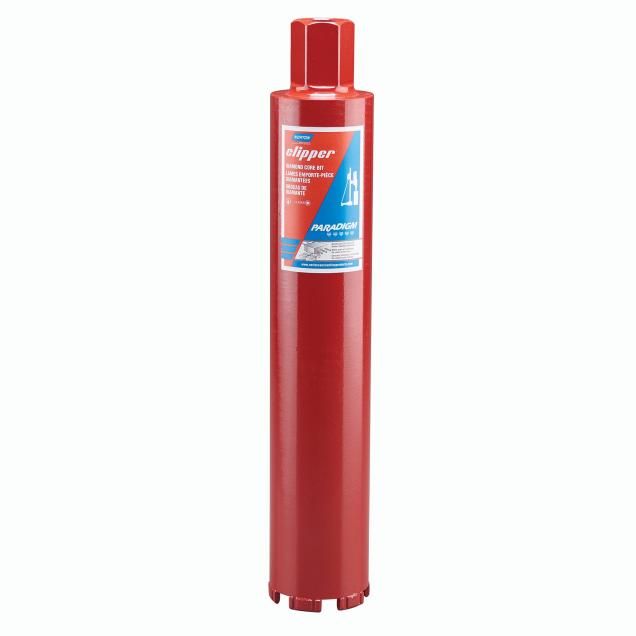

Norton Clipper Paradigm Wet Core Bit
Features and benefits
The Norton Clipper Paradigm's strong core is laser-welded to withstand demanding applications
The tapered segment design allows for faster penetration
The Paradigm's large segment height helps to extend the product life
16 in. tube length to produce a 13 in. coring depth
Part Specifications
Where to Buy|
Useful Length
|
Total Height
|
Inventory Type
|
Connection Type
|
Segment Length
|
Segment Thickness
|
Segment Attachment
|
Part Number
|
|---|---|---|---|---|---|---|---|
| .000 in | .490 in | Stock | Others | .945 in | .220 in | Brazed | 70184601707 |
| .000 in | .490 in | Stock | 1"1/4 F | .945 in | .185 in | Brazed | 70184601418 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .185 in | Brazed | 70184601419 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .160 in | Laser | 70184601417 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .150 in | Laser | 70184601416 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .150 in | Laser | 70184601415 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .150 in | Laser | 70184601414 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .140 in | Laser | 70184601413 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .140 in | Laser | 70184601412 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .140 in | Laser | 70184601411 |
| .000 in | .490 in | Stock | 1"1/4 M | .945 in | .140 in | Laser | 70184601410 |
| .000 in | .490 in | MTO | Others | .945 in | .220 in | Brazed | 70184601706 |
