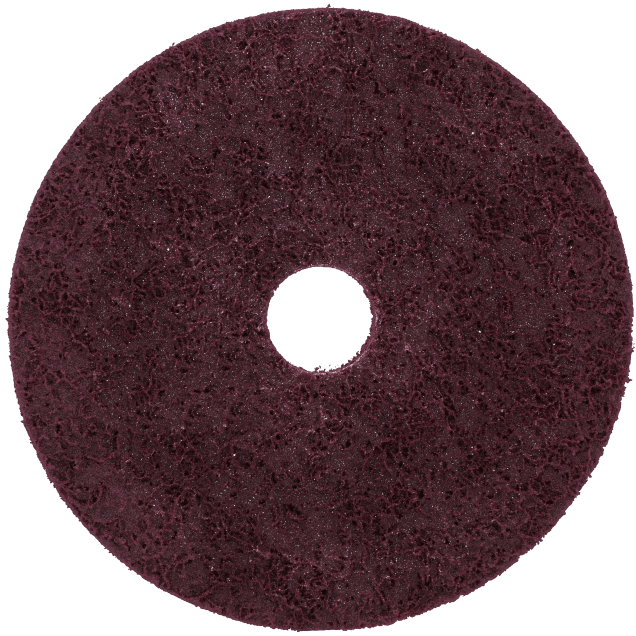

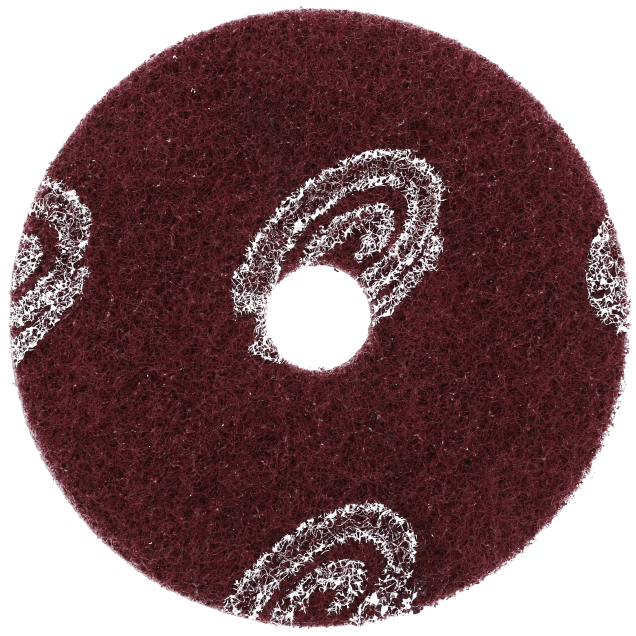

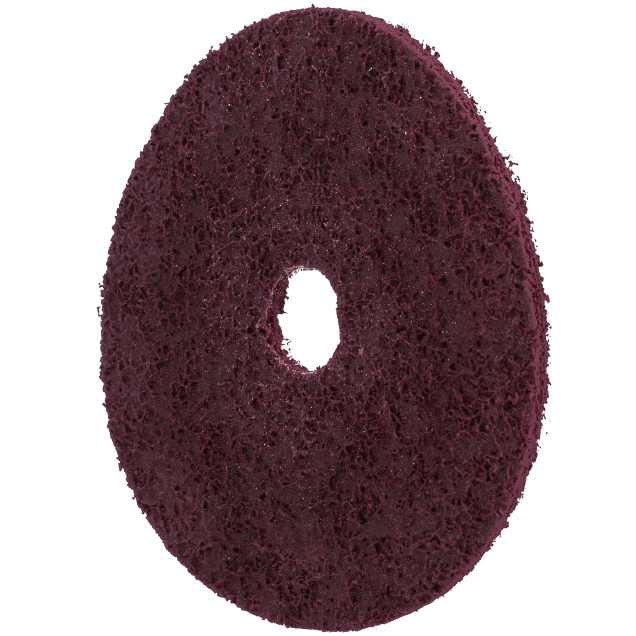

Norton Vortex Rapid Prep AO Non-Woven Disc
Abrasive
AO
Backing Material
Non-Woven
Features and benefits
High-performing, patented Vortex agglomerated aluminum oxide grain provides the cutting power of a coarser grit with the finish of finer grits
Premium high-loft nylon fiber bonded to a strong nylon scrim backing allows a thick layer of resin bond and grain for extended life and provides added durability and stiffness
Proprietary Clean Bond resin technology guarantees smear-free finishes even on high nickel content alloys and reduces loading on aluminum and other soft metals
Fits standard die and right-angle grinders
Part Specifications
Where to BuyProduct SpecsDownload as CSV
|
Diameter
|
Arbor Hole
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Color
|
Vacuum Holes
|
Abrasive
|
Cap Code
|
RPM Speed Guideline
|
Ply Count
|
Packaging Quantity
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 7/8 in | Very Fine | Very Fine | MTO | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623341368 |
| 6 in | 7/8 in | Fine | Fine | MTO | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623341365 |
| 6 in | 7/8 in | Very Fine | Very Fine | MTO | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623341367 |
| 7 in | 7/8 in | Fine | Fine | MTO | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623341366 |
| 7 in | 7/8 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623341364 |
| 7 in | 7/8 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623341362 |
| 7 in | 7/8 in | Extra Coarse | Extra Coarse | MTO | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623341360 |
| 7 in | 0 in | Extra Coarse | Extra Coarse | Stock | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623334976 |
| 5 in | 0 in | Extra Coarse | Extra Coarse | Stock | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623334974 |
| 5 in | 7/8 in | Extra Coarse | Extra Coarse | Stock | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623334975 |
| 4-1/2 in | 0 in | Extra Coarse | Extra Coarse | Stock | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623334972 |
| 2 in | 0 in | Extra Coarse | Extra Coarse | MTO | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 80 | 66623334970 |
| 4 in | 0 in | Extra Coarse | Extra Coarse | MTO | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623334971 |
| 7 in | 0 in | Very Fine | Very Fine | MTO | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623334969 |
| 5 in | 0 in | Fine | Fine | Stock | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | 1-Ply | 25 | 66623333609 |
| 4 in | 0 in | Very Fine | Very Fine | MTO | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623334967 |
| 8 in | 0 in | Medium | Medium | MTO | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 20 | 66623334966 |
| 7 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334965 |
| 6 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334964 |
| 5 in | 7/8 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334963 |
| 4-1/2 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334961 |
| 5 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334962 |
| 4 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334959 |
| 3 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623334956 |
| 2 in | 0 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 50 | 66623334958 |
| 7 in | 0 in | Fine | Fine | Stock | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623334955 |
| 4-1/2 in | 7/8 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | 1-Ply | 25 | 66623334944 |
| 4-1/2 in | 0 in | Fine | Fine | Stock | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | 1-Ply | 25 | 66623333607 |
| 8 in | 0 in | Coarse | Coarse | MTO | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334953 |
| 5 in | 7/8 in | Fine | Fine | MTO | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 40 | 66623334954 |
| 7 in | 0 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334951 |
| 5 in | 7/8 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334946 |
| 6 in | 0 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334949 |
| 5 in | 0 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334945 |
| 4-1/2 in | 0 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334943 |
| 4 in | 0 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334884 |
| 3 in | 0 in | Coarse | Coarse | Stock | Brown | N/A | Aluminum Oxide | S2203 | Max. RPM determined by back-up pad. | - | 25 | 66623334883 |
| 5 in | 0 in | Very Fine | Very Fine | Stock | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623333617 |
| 6 in | 0 in | Extra Coarse | Extra Coarse | MTO | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623333621 |
| 3 in | 0 in | Extra Coarse | Extra Coarse | MTO | Black | N/A | Aluminum Oxide | S2103 | Max. RPM determined by back-up pad. | - | 25 | 66623333620 |
| 4-1/2 in | 0 in | Very Fine | Very Fine | Stock | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623333615 |
| 2 in | 0 in | Very Fine | Very Fine | MTO | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 80 | 66623333613 |
| 4-1/2 in | 7/8 in | Very Fine | Very Fine | Stock | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623333616 |
| 4-1/2 in | 7/8 in | Medium | Medium | Stock | Maroon | N/A | Aluminum Oxide | S2303 | Max. RPM determined by back-up pad. | - | 25 | 66623333612 |
| 8 in | 0 in | Fine | Fine | MTO | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 20 | 66623333611 |
| 3 in | 0 in | Very Fine | Very Fine | Stock | Blue | N/A | Aluminum Oxide | S2503 | Max. RPM determined by back-up pad. | - | 25 | 66623333614 |
| 6 in | 0 in | Fine | Fine | MTO | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623333610 |
| 4-1/2 in | 7/8 in | Fine | Fine | Stock | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623333608 |
| 3 in | 0 in | Fine | Fine | Stock | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623333605 |
| 4 in | 0 in | Fine | Fine | Stock | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 25 | 66623333606 |
| 2 in | 0 in | Fine | Fine | MTO | Green | N/A | Aluminum Oxide | S2403 | Max. RPM determined by back-up pad. | - | 80 | 66623333604 |
