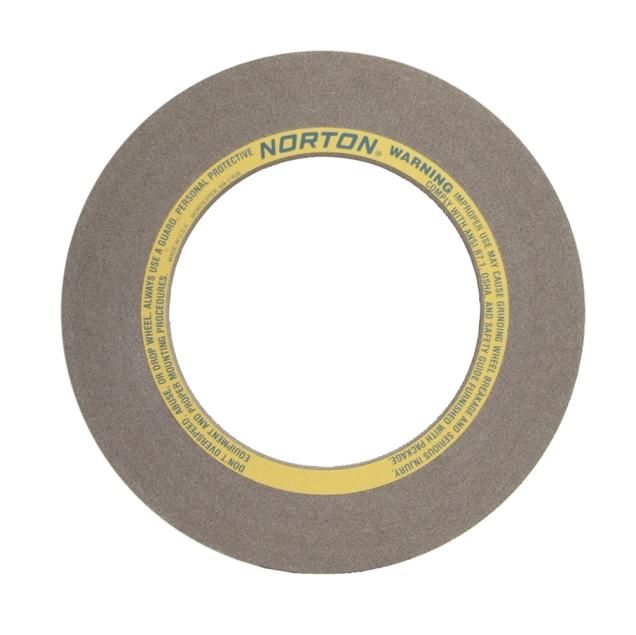

Norton 32AC Type 01 Centerless Grinding Wheel

Grind materials of any tensile strength with the 32AC AO Type 01 centerless wheel. This Type 01 straight wheel features aluminum oxide and silicon carbide abrasive to grind materials ranging from 400 series stainless to soft carbon steels to gray iron and more. Rely on a single centerless wheel to achieve stock removal and work through long irregular paths, thanks to the Norton resin bond design. Whether you work on simple or complex shaped components, this wheel handles it all, saving time otherwise spent switching wheels.

Abrasive AO

Wheel Type Type 01

Features and benefits

Type 01 straight wheel with aluminum oxide/silicon carbide abrasive

Norton resin bond centerless wheels are the choice for stock removal, long irregular paths, and faster through feed grinding

Ideal for full range of simple- to complex-shaped components

Ideal when one wheel is used to grind several different materials from high to low tensile strength: 400 series stainless, hard carbon steels, soft carbon steels, tool steels, aluminum, cast iron, ductile iron, and gray iron

Customise columns

Product SpecsDownload as CSV

Diameter	Arbor Hole	Thickness	Grit Size	Sanding Grade	Inventory Type	Max Operating Speed	External Spec	Abrasive	Wheel Type	Part Number
24 in	305 mm	8 in	54 Grit	Medium	Stock	1510	32AC54-QB	Aluminum Oxide	Type 01	69083166548
24 in	305 mm	10 in	54 Grit	Medium	Stock	1510	32AC54-QB	Aluminum Oxide	Type 01	69083166549
24 in	305 mm	6 in	54 Grit	Medium	Stock	1510	32AC54-QB	Aluminum Oxide	Type 01	69083166547
20 in	305 mm	8 in	54 Grit	Medium	Stock	1815	32AC54-QB	Aluminum Oxide	Type 01	69078666546
20 in	305 mm	6 in	54 Grit	Medium	Stock	1815	32AC54-QB	Aluminum Oxide	Type 01	69078666545
