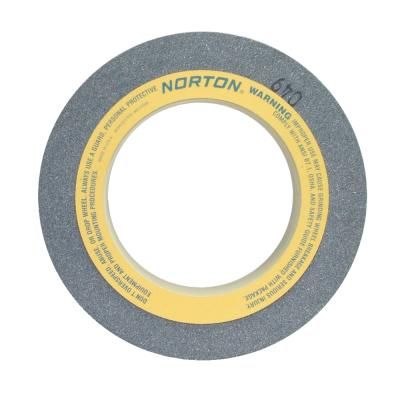

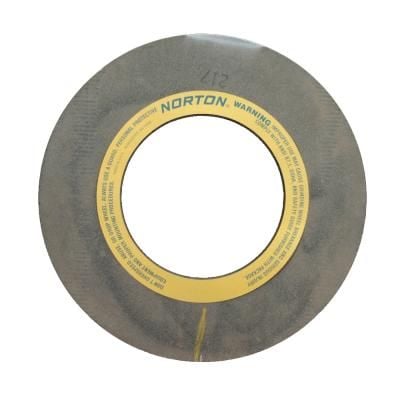

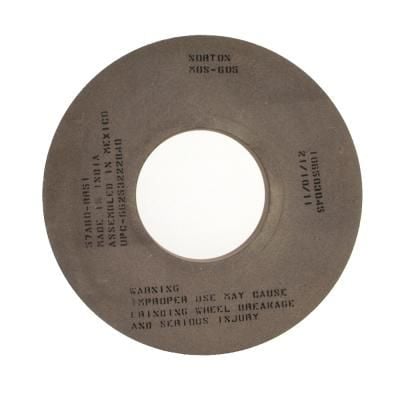

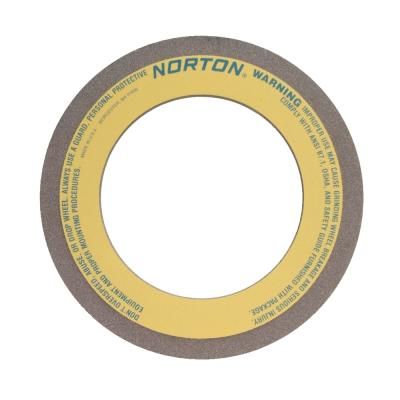

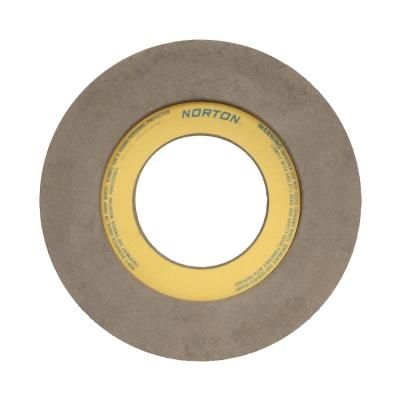

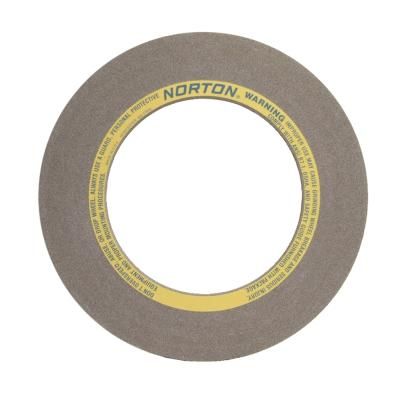

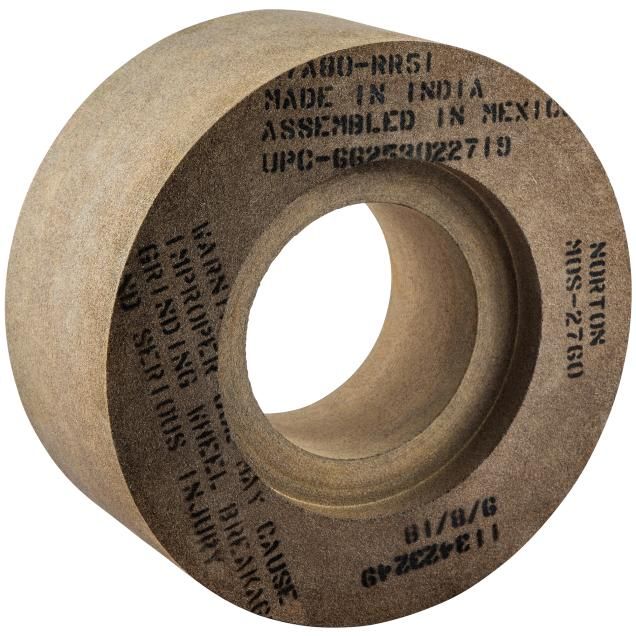

Norton 57A Type 07 Centerless Feed Wheel
Features and benefits
Type 07 recessed two sides wheel with tough, durable aluminum oxide abrasive
Durable (more durable than rubber bond) plastic bond system
Strong, all-purpose feed (regulating/workpiece driving mechanism) wheel for centerless grinding applications
With the centerless wheel, quickly impart a cylindrical shape with minimum geometry loss to part being ground
Part Specifications
Where to Buy|
Diameter
|
Recess B Diameter
|
Recess B Depth
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 in | 7-1/2 in | 1-1/2 in | 5 in | 8 in | 80 Grit | Medium | Stock | 605 | 57A80-RP4 | Aluminum Oxide | Type 07 | 66253222199 |
| 12 in | 7-1/2 in | 1/2 in | 5 in | 4 in | 80 Grit | Medium | Stock | 605 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253222844 |
| 12 in | 7-1/2 in | 1/2 in | 5 in | 6 in | 80 Grit | Medium | Stock | 605 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253222846 |
| 12 in | 7-1/2 in | 1-1/2 in | 5 in | 6 in | 80 Grit | Medium | Stock | 605 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253222847 |
| 12 in | 7-1/2 in | 1-1/2 in | 5 in | 8 in | 80 Grit | Medium | Stock | 605 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253222850 |
| 14 in | 8 in | 1-1/2 in | 5 in | 8 in | 80 Grit | Medium | Stock | 520 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253322859 |
| 9 in | 5-1/2 in | 5/8 in | 4 in | 4 in | 80 Grit | Medium | Stock | 2760 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253022719 |
| 12 in | 7-1/2 in | 1-1/2 in | 5 in | 8 in | 80 Grit | Medium | Stock | 605 | 57A80-RR51 | Aluminum Oxide | Type 07 | 66253222851 |
Product Uses
Industries
Applications
Materials
Machines
Other Recommended Products

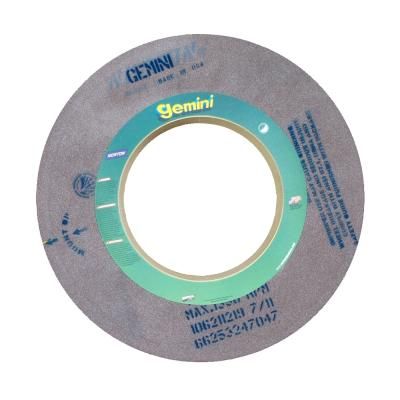

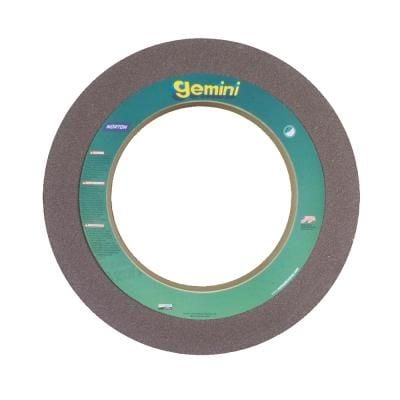

Norton Gemini 52A Type 01 Cylindrical Grinding Wheel

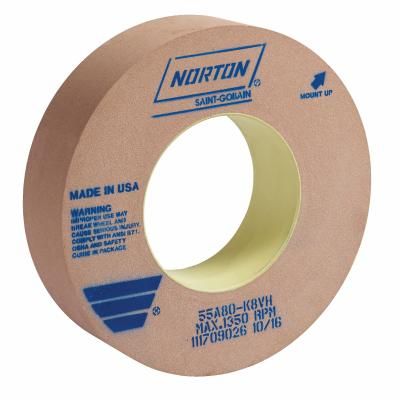

Norton Gemini2 55A Type 01 Centerless Grinding Wheel
