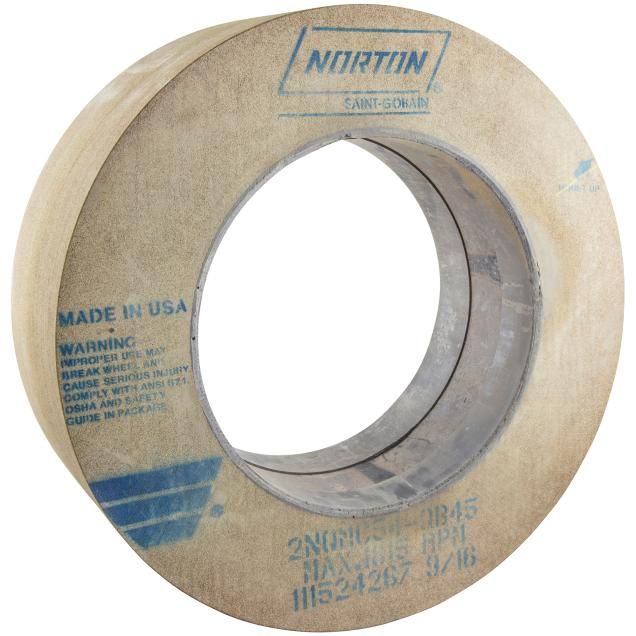

Norton Century45 2NQMC Type 01 Centerless Grinding Wheel

Maximize productivity during centerless applications while keeping costs and noise to a minimum with the Century45 2NQMC CA Type 01 centerless wheel. Formulated with a 2NQ ceramic abrasive and Century45 B45-type resin bond, this wheel removes at least 30 percent more stock with up to 50 percent less cycle time than common centerless wheels. Use it to grind a wide range of materials including titanium and super alloys as well as tool, soft- and hard-carbon, and 300- and 400-series stainless steels.

Abrasive CA

Wheel Type Type 01

Features and benefits

Type 01 straight wheel with proprietary 2NQ ceramic abrasive and Century45 (B45) resin bond formulation engineered specifically to maximize productivity of centerless applications

Achieve reduction in cycle time, over 30% improvement of stock removal, and up to 50% reduction in cycle time

Less grinding noise significantly improves operator safety

Best centerless grinding choice for lowest total abrasive cost on a variety of materials including hard-to-grind 300 series stainless, 400 series stainless, hard carbon steels, soft carbon steels, tool steels, titanium, and super alloys

Customise columns

Product SpecsDownload as CSV

Diameter	Arbor Hole	Thickness	Grit Size	Sanding Grade	Inventory Type	Max Operating Speed	External Spec	Abrasive	Wheel Type	Part Number
24 in	305 mm	10 in	54 Grit	Medium	Stock	1510	2NQMC54-QB45	Ceramic Alumina	Type 01	66243496410
24 in	305 mm	8 in	54 Grit	Medium	Stock	1510	2NQMC54-QB45	Ceramic Alumina	Type 01	66243496409
20 in	305 mm	8 in	54 Grit	Medium	Stock	1815	2NQMC54-QB45	Ceramic Alumina	Type 01	66243496407
20 in	305 mm	6 in	54 Grit	Medium	Stock	1815	2NQMC54-QB45	Ceramic Alumina	Type 01	66243496406
24 in	305 mm	6 in	54 Grit	Medium	Stock	1510	2NQMC54-QB45	Ceramic Alumina	Type 01	66243496408
