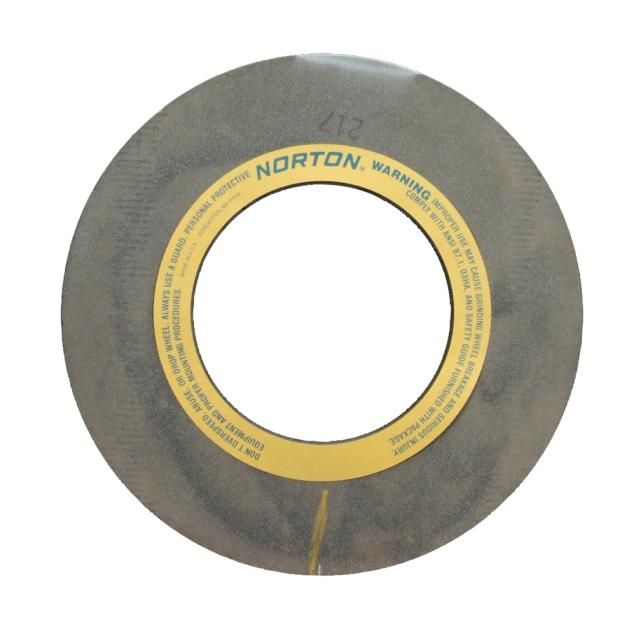

Norton Type 01 Centerless Grinding Wheel

Grind materials of any tensile strength with the Type 01 centerless wheel. This Type 01 straight wheel features aluminum oxide and silicon carbide abrasive to grind materials ranging from 400 series stainless to soft carbon steels to gray iron and more. Rely on a single centerless wheel to achieve stock removal and work through long irregular paths, thanks to the Norton resin bond design. Whether you work on simple or complex shaped components, this wheel handles it all, saving time otherwise spent switching wheels.

Wheel Type Type 01

Features and benefits

Type 01 straight wheel with aluminum oxide/silicon carbide abrasive

Norton resin bond centerless wheels are the choice for stock removal, long irregular paths, and faster through feed grinding

Ideal for full range of simple- to complex-shaped components

Ideal when one wheel is used to grind several different materials from high to low tensile strength: 400 series stainless, hard carbon steels, soft carbon steels, tool steels, aluminum, cast iron, ductile iron, and gray iron

Customise columns

Product SpecsDownload as CSV

Diameter	Arbor Hole	Thickness	Grit Size	Sanding Grade	Inventory Type	Max Operating Speed	ExternalSpec	Abrasive	Wheel Type	External Spec	Part Number
24 in	12 in	20 in	54 Grit	Medium	Stock	1510	32AC54-SB	Aluminum Oxide	Type 01	-	69083166553
24 in	12 in	20 in	54 Grit	Medium	Stock	1510	-	Aluminum Oxide	Type 01	32AC54-QB	69083166552
