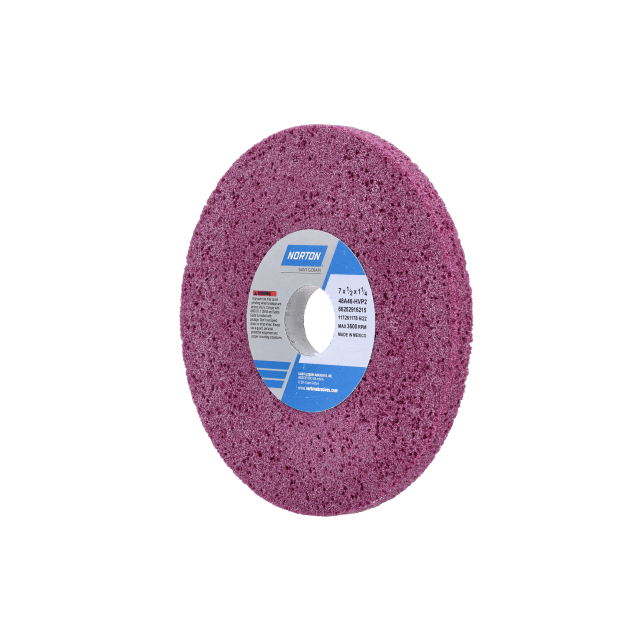

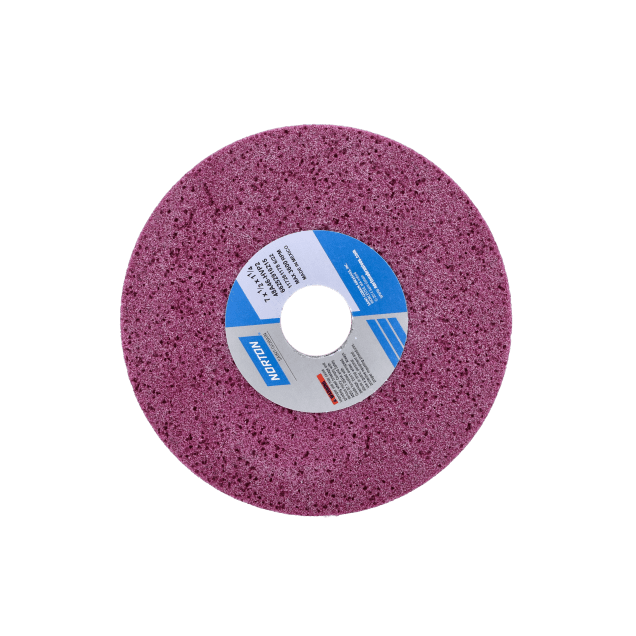

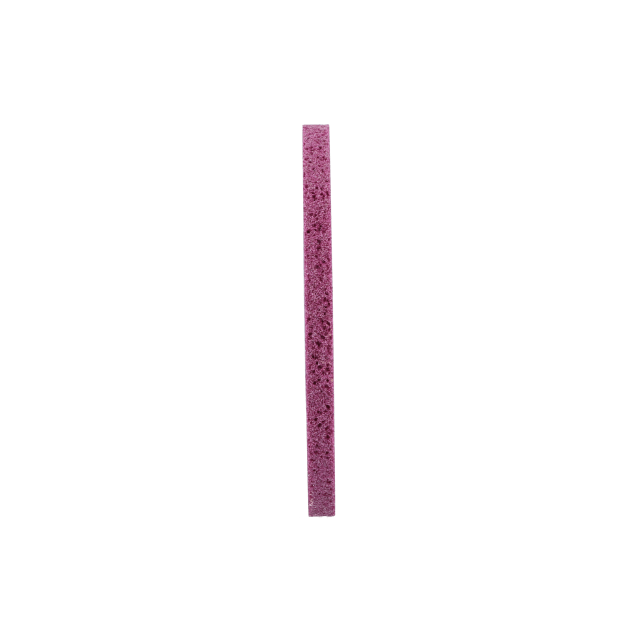

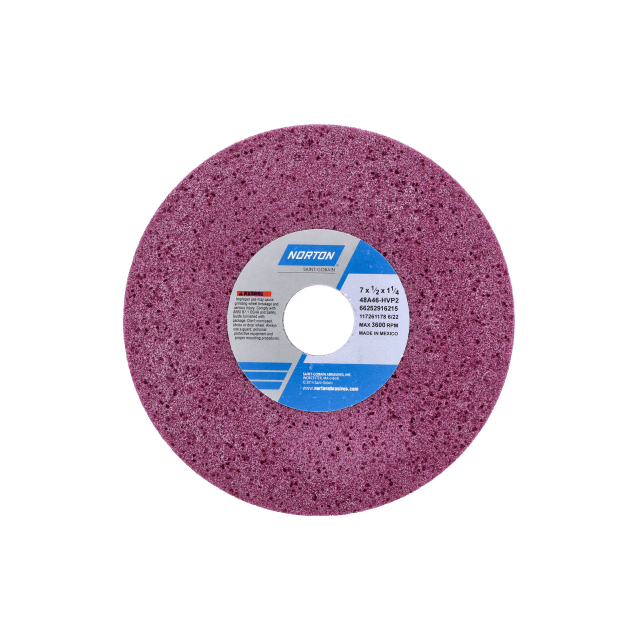

Norton 48A Type 01 Toolroom Wheel
Features and benefits
Type 01 straight wheels with strong, versatile aluminum oxide abrasive that works well on a variety of tool steels at moderate to heavy feed rates on CNC cutting tool machines, and cylindrical, and surface grinders
Controlled porosity bond for increased chip clearance and maximum coolant flow; reduced loading; extremely cool cutting wet or dry in heat sensitive applications
Durable bond post for maximum grain retention and form holding, less dressing; longer wheel life
Maximum depth of cut for increased grain efficiency; consistent grinding action at high metal removal rates
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 48A60-HVP2 | Aluminum Oxide | Type 01 | 66252916217 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 48A46-HVP2 | Aluminum Oxide | Type 01 | 66252916215 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 48A46-HVP2 | Aluminum Oxide | Type 01 | 66253019350 |
| 12 in | 3 in | 1 in | 60 Grit | Medium | Stock | 2710 | 48A60-HVP2 | Aluminum Oxide | Type 01 | 66253220891 |
| 12 in | 3 in | 1 in | 46 Grit | Coarse | MTO | 2710 | 48A46-HVP2 | Aluminum Oxide | Type 01 | 66253220889 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | MTO | 3600 | 48A60-KVBE | Aluminum Oxide | Type 01 | 69936662113 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 48A60-JVBE | Aluminum Oxide | Type 01 | 69936662110 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | MTO | 3600 | 48A46-KVBE | Aluminum Oxide | Type 01 | 69936662106 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | MTO | 3105 | 48A46-HVBE | Aluminum Oxide | Type 01 | 69936662100 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 48A60-JVBE | Aluminum Oxide | Type 01 | 69936662098 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3105 | 48A46-I8VBE | Aluminum Oxide | Type 01 | 69936662101 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | MTO | 3600 | 48A60-IVBE | Aluminum Oxide | Type 01 | 69936662085 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | MTO | 3600 | 48A46-JVBE | Aluminum Oxide | Type 01 | 69936662104 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | MTO | 3600 | 48A46-KVBE | Aluminum Oxide | Type 01 | 69936662084 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 48A46-JVBE | Aluminum Oxide | Type 01 | 69936662083 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | MTO | 3600 | 48A46-IVBE | Aluminum Oxide | Type 01 | 69936662082 |
