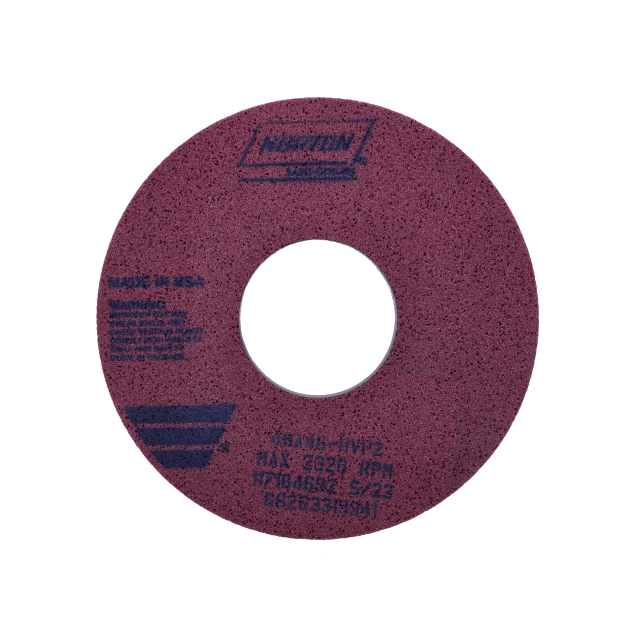

Norton 48A Type 05 Toolroom Wheel
Features and benefits
Type 05 recessed one side wheels with strong, versatile aluminum oxide abrasive that works well on a variety of tool steels at moderate to heavy feed rates on cylindrical and surface grinders
Controlled porosity bond for increased chip clearance and maximum coolant flow; reduced loading; extremely cool cutting wet or dry in heat sensitive applications
Durable bond post for maximum grain retention and form holding, less dressing; longer wheel life
Maximum depth of cut for increased grain efficiency; consistent grinding action at high metal removal rates
Part Specifications
Where to Buy|
Diameter
|
Recess B Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3600 | 48A46-HVP2 | Aluminum Oxide | Type 05 | 66252916232 |
| 14 in | 8 in | 5 in | 1-1/2 in | 46 Grit | Coarse | MTO | 2320 | 48A46-HVP2 | Aluminum Oxide | Type 05 | 66253319958 |
| 14 in | 8 in | 5 in | 2 in | 46 Grit | Coarse | Stock | 2320 | 48A46-HVP2 | Aluminum Oxide | Type 05 | 66253319941 |
Product Uses
Industries
Applications
Materials
Machines
