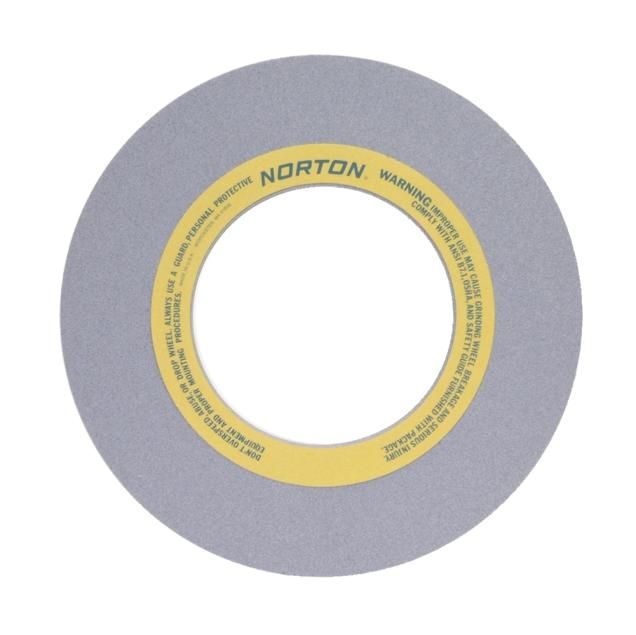

Norton 86A Type 01 Cylindrical Grinding Wheel


Grind a variety of materials with this 86A AO Type 01 cylindrical wheel, which combines high performance and low price when used with your cylindrical or surface grinder. This straight wheel incorporates a premium abrasive and superior bond system to produce high G-ratios of metal removal to wheel wear. Enjoy increased productivity when you use it with hard and soft carbon steels, stainless and tool steels, aluminum, and cast, ductile and gray irons. This wheel holds form for better part geometry, and because the grind cycles don't need altering, no special operation training is required.

Icon of a abrasive
Abrasive AO
Icon of a wheel
Wheel Type Type 01

Features and benefits

Type 01 straight wheel with premium abrasive and superior bond system produce high grinding G-Ratios (metal removal/wheel wear) for increased productivity

Hold form for better part geometry; decrease in dress frequency and/or dress compensation

Engineered for easy use, grind cycles do not need to be altered, no special operator training is needed

Excellent blend of performance and price; ideal for grinding a variety of materials including 400 series stainless, hard carbon steels, soft carbon steels, tool steels, aluminum, cast iron, ductile iron, and gray iron

Part Specifications

Where to Buy
Customise columns
Product SpecsDownload as CSV
Diameter
Arbor Hole
Thickness
Grit Size
Sanding Grade
Inventory Type
Max Operating Speed
External Spec
Abrasive
Wheel Type
Part Number
20 in 8 in 1 in 80 Grit Medium Stock 1625 86A80-J8V127 Aluminum Oxide Type 01 69078608983
20 in 8 in 1 in 60 Grit Medium Stock 1625 86A60-J8V127 Aluminum Oxide Type 01 69078608982
