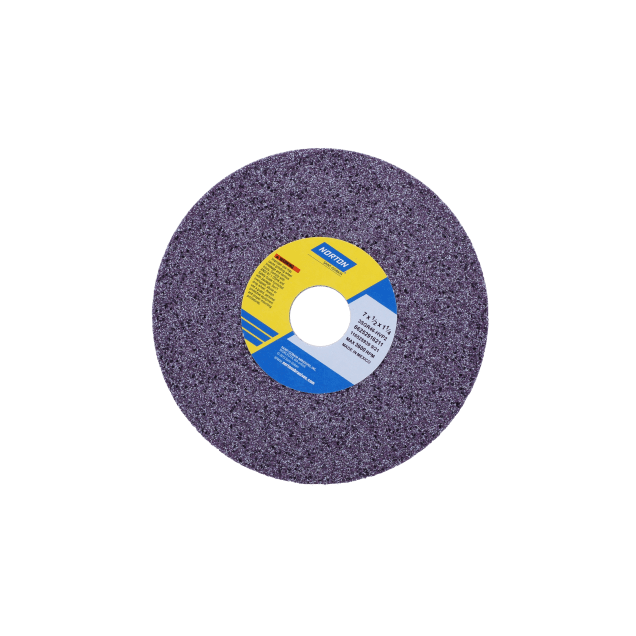

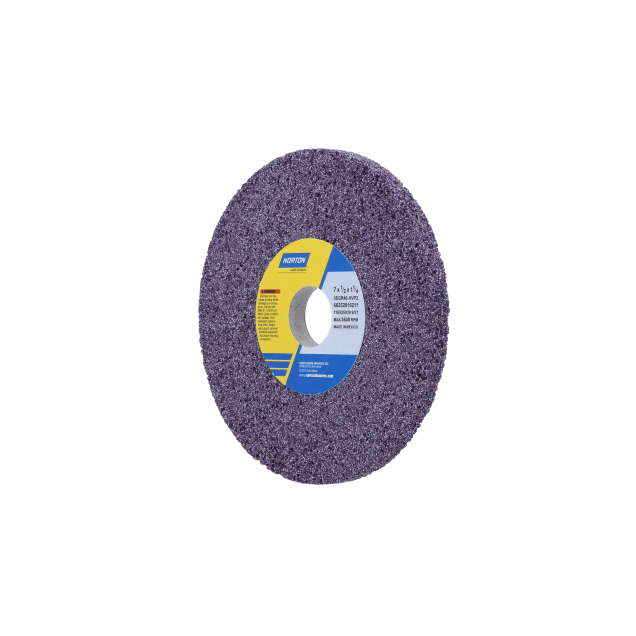

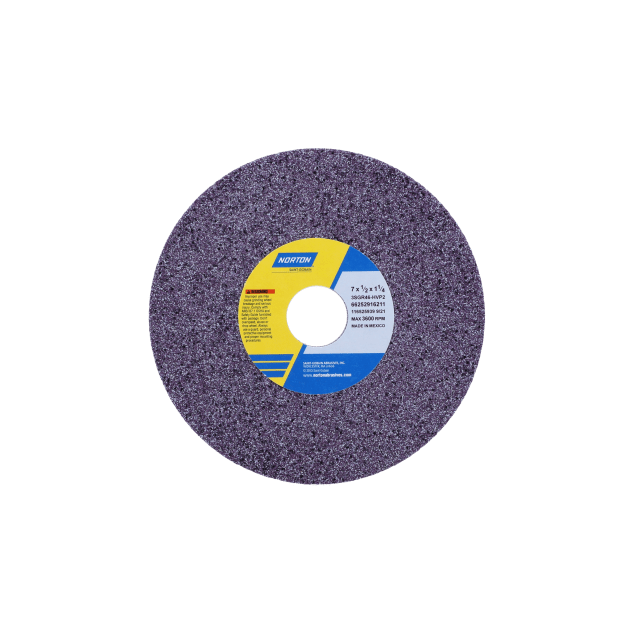

Norton SG 3SGR Type 01 Toolroom Wheel
Features and benefits
Type 01 straight wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal and cool, superior cutting; last 3 - 5X longer than aluminum oxide wheels; 2X rough stock removal vs. conventional abrasives
Controlled porosity bond for increased chip clearance and maximum coolant flow; reduced loading; extremely cool cutting wet or dry in heat sensitive applications
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Exceptional choice for high productivity, low total per-part grinding cost on CNC cutting tool machines, and cylindrical, and surface grinders
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 3SGR60-HVP2 | Ceramic Alumina | Type 01 | 66252916213 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 3SGR46-HVP2 | Ceramic Alumina | Type 01 | 66252916211 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 3SGR46-HVP2 | Ceramic Alumina | Type 01 | 66253019346 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 3SGR60-HVP2 | Ceramic Alumina | Type 01 | 66253019348 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 3SGR46-GVP2 | Ceramic Alumina | Type 01 | 66253019345 |
| 12 in | 3 in | 1 in | 46 Grit | Coarse | Stock | 2710 | 3SGR46-HVP2 | Ceramic Alumina | Type 01 | 66253220885 |
