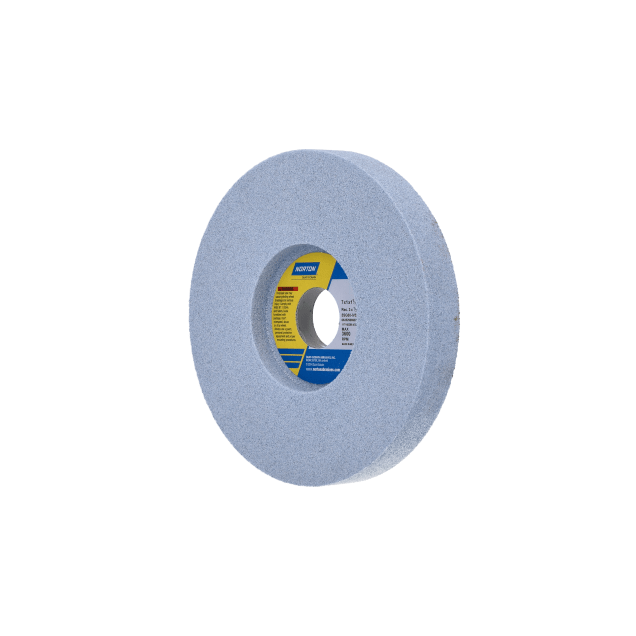

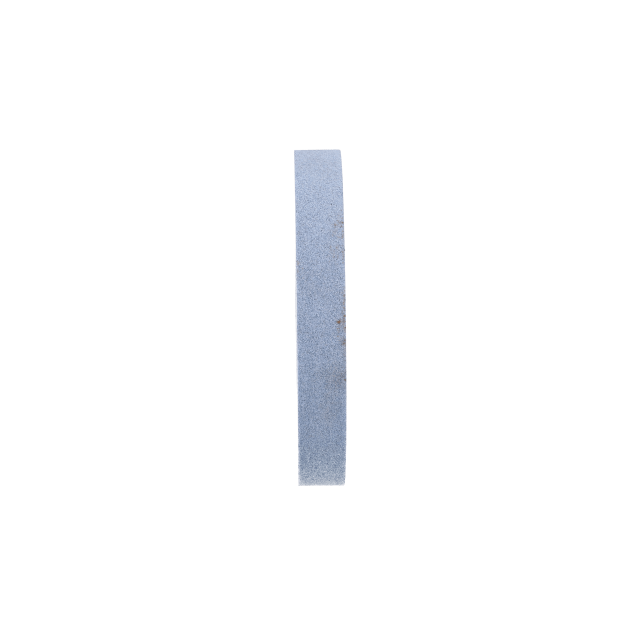

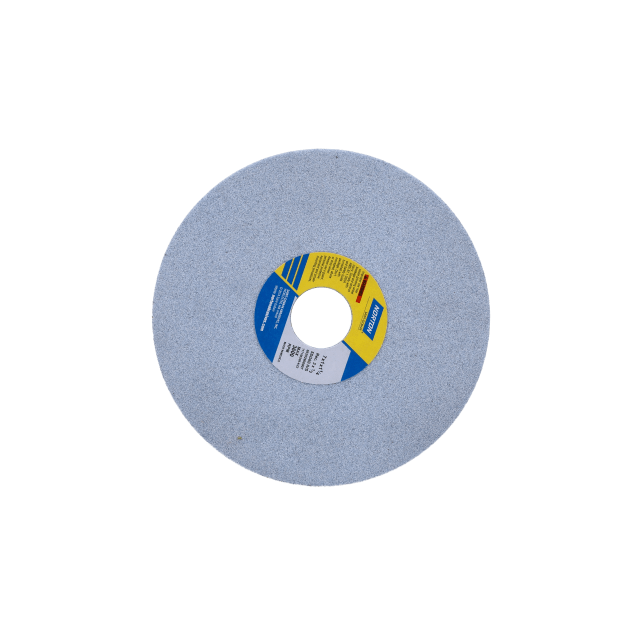

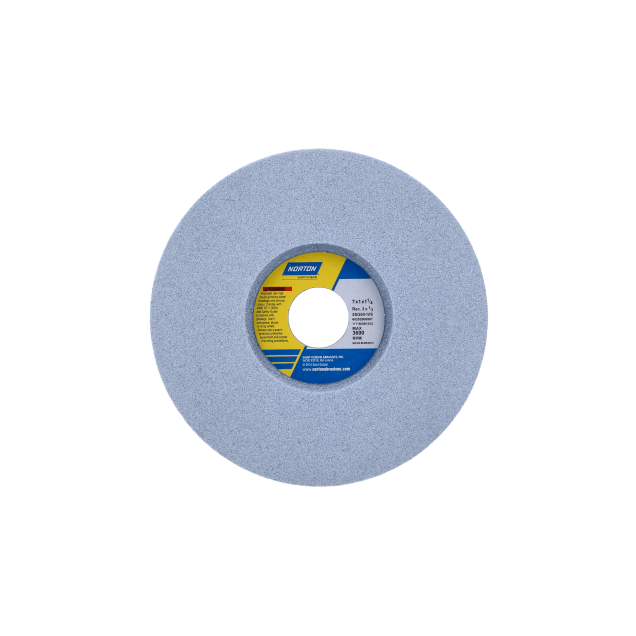

Norton SG 5SG Type 05 Toolroom Wheel
Features and benefits
Type 05 recessed one side wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal, cool, superior cutting; 3 - 5X more life than aluminum oxide wheels; 2X rough stock removal vs conventional abrasives
High performance bond for versatility (for grinding high sped tool steels, hardened and soft steels, and aerospace alloys) and exceptional form holding
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Outstanding choice for high productivity, low total per-part grinding cost on cylindrical, and surface grinders
Part Specifications
Where to Buy|
Diameter
|
Recess B Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 3 in | 1-1/4 in | 1 in | 60 Grit | Medium | Stock | 3600 | 5SG60-IVS | Ceramic Alumina | Type 05 | 66252906907 |
| 7 in | 3 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3600 | 5SG46-IVS | Ceramic Alumina | Type 05 | 66252901814 |
| 8 in | 3-1/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3105 | 5SG46-IVS | Ceramic Alumina | Type 05 | 66253013543 |
| 8 in | 3-1/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3600 | 5SG46-JVS | Ceramic Alumina | Type 05 | 66253003301 |
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 60 Grit | Medium | Stock | 3600 | 5SG60-JVS | Ceramic Alumina | Type 05 | 66252942431 |
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3600 | 5SG46-JVS | Ceramic Alumina | Type 05 | 66252942427 |
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3600 | 5SG46-IVS | Ceramic Alumina | Type 05 | 66252942318 |
| 7 in | 2-3/4 in | 1-1/4 in | 3/4 in | 60 Grit | Medium | MTO | 3600 | 5SG60-IVS | Ceramic Alumina | Type 05 | 66252942312 |
| 7 in | 2-3/4 in | 1-1/4 in | 3/4 in | 46 Grit | Coarse | Stock | 3600 | 5SG46-IVS | Ceramic Alumina | Type 05 | 66252941976 |
| 14 in | 8 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 1800 | 5SG60-JVS | Ceramic Alumina | Type 05 | 66253364105 |
| 14 in | 8 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 1800 | 5SG60-IVS | Ceramic Alumina | Type 05 | 66253364104 |
| 14 in | 8 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 1800 | 5SG46-JVS | Ceramic Alumina | Type 05 | 66253364103 |
| 14 in | 8 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 1800 | 5SG46-IVS | Ceramic Alumina | Type 05 | 66253364102 |
| 12 in | 7-1/2 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2070 | 5SG46-GVSP | Ceramic Alumina | Type 05 | 66253263127 |
| 12 in | 7-1/2 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2070 | 5SG60-IVSP | Ceramic Alumina | Type 05 | 66253263050 |
| 12 in | 7-1/2 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2070 | 5SG46-IVS | Ceramic Alumina | Type 05 | 66253202883 |
