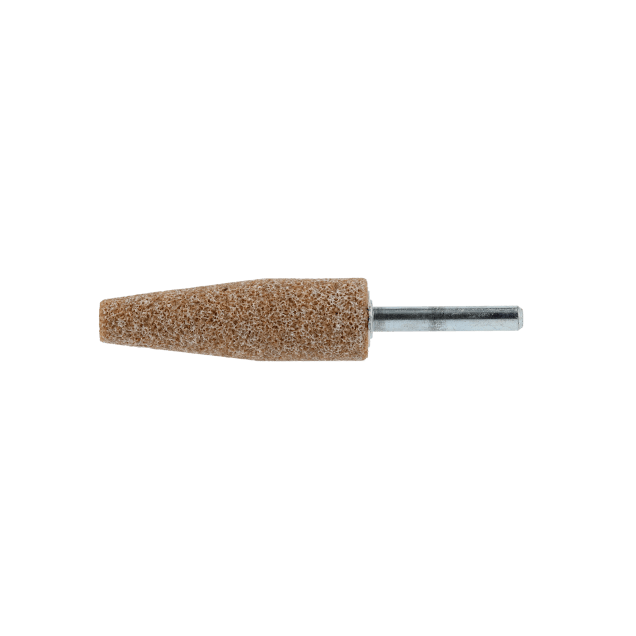

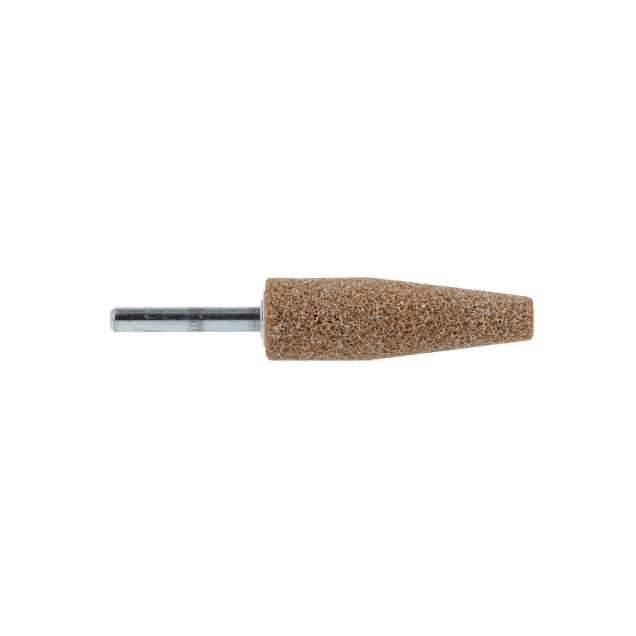

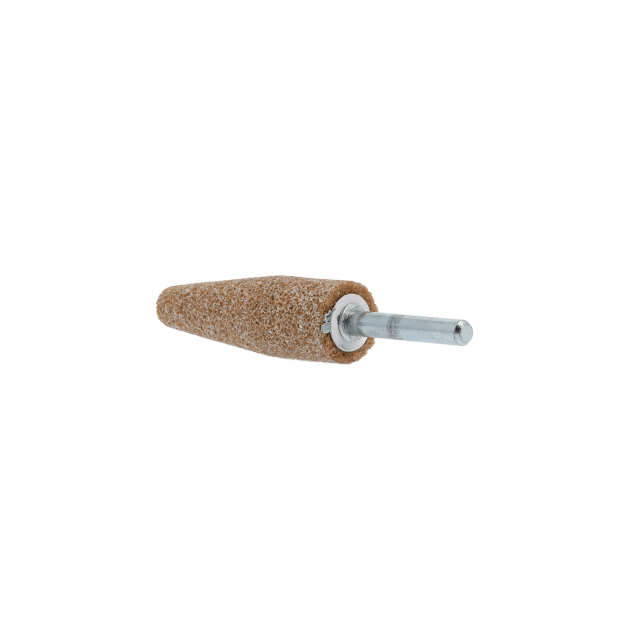

Norton Gemini 38A Type 52 Mounted Point

Make cool cuts while minimizing burn and melt risk with this Gemini 38A mounted point on your power grinder. Its 38A abrasive surface makes fast cuts at relatively low temperatures, extending the mounted point's life, and the high-temperature vitrified bonding resin minimizes grit loss even at high RPMs. Use this mounted point for stock removal, blending, deburring, and finishing or polishing surfaces to a high gloss. This versatile mounted point's wide-grit range makes it an ideal choice for general-purpose work and numerous small jobs.

Icon of a abrasive
Abrasive AO
Icon of a wheel
Wheel Type Type 52

Features and benefits

38A abrasive is designed to be cool cutting to minimize burn

High temperature vitrified bond maximizes form holding and life

Wide grit range for stock removal, blending/deburring, and finishing/polishing

Good general-purpose choice for numerous small jobs and when initial price is key purchasing criterion

Part Specifications

Where to Buy
Customise columns
Product SpecsDownload as CSV
Diameter
Thickness
Grit Size
Sanding Grade
Inventory Type
External Spec
Subshape
SpindleType
Abrasive
Wheel Type
RPM Speed Guideline
Part Number
2 in 1 in 60 Grit Medium Stock 38A M W242 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624592
1/8 in 1/4 in 60 Grit Medium MTO 38A M B55 A5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624425
3/4 in 3/16 in 60 Grit Medium MTO 38A M B81 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624437
1/8 in 3/8 in 60 Grit Medium Stock 38A M B97 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624451
1/2 in 5/8 in 60 Grit Medium MTO 38A M B91 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624443
1/8 in 1/4 in 60 Grit Medium MTO 38A M B96 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624448
1/8 in 1/4 in 90 Grit Fine MTO 38A M/F B96 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624449
3/32 in 1/4 in 60 Grit Medium MTO 38A M B98 C5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624452
1/2 in BALL 60 Grit Medium Stock 38A M B121 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624466
3/8 in BALL 60 Grit Medium Stock 38A M B122 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624470
3/8 in BALL 90 Grit Fine MTO 38A M/F B122 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624471
3/16 in BALL 60 Grit Medium Stock 38A M B123 F2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624472
1/8 in BALL 90 Grit Fine Stock 38A M/F B124 A5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624474
3/8 in 1/2 in 60 Grit Medium MTO,Stock 38A M B132 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624479
3/8 in 3/8 in 60 Grit Medium MTO 38A M B133 K2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624481
5/16 in 3/8 in 60 Grit Medium MTO 38A M B134 K2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624482
1/4 in 1/2 in 60 Grit Medium Stock 38A M B135 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624484
1/8 in 1/4 in 60 Grit Medium MTO 38A M W144 E5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624488
1/8 in 3/8 in 60 Grit Medium MTO 38A M W145 E5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624489
1/8 in 1/2 in 60 Grit Medium MTO 38A M W146 E5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624491
3/16 in 1/4 in 60 Grit Medium MTO 38A M W152 F2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624495
3/16 in 3/8 in 60 Grit Medium MTO 38A M W153 G2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624496
3/16 in 1/2 in 60 Grit Medium Stock 38A M W154 G2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624497
1/4 in 1/4 in 60 Grit Medium MTO 38A M W160 G2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624501
1/4 in 3/8 in 60 Grit Medium MTO 38A M W162 G2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624503
1/4 in 1/2 in 60 Grit Medium Stock 38A M W163 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624504
1/4 in 3/4 in 60 Grit Medium Stock 38A M W164 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624505
5/16 in 1/2 in 60 Grit Medium MTO 38A M W170 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624511
3/8 in 3/8 in 60 Grit Medium MTO 38A M W175 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624516
3/8 in 3/4 in 60 Grit Medium Stock 38A M W177 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624518
1/2 in 1/2 in 60 Grit Medium Stock 38A M W185 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624525
1/2 in 1/2 in 60 Grit Medium MTO 38A M W185 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624526
1/2 in 3/4 in 60 Grit Medium MTO,Stock 38A M W186 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624528
1/2 in 1-1/2 in 60 Grit Medium Stock 38A M W188 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624530
1/2 in 2 in 60 Grit Medium Stock 38A M W189 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624531
5/8 in 1 in 60 Grit Medium MTO,Stock 38A M W196 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624539
3/4 in 1/8 in 60 Grit Medium Stock 38A M W200 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624543
3/4 in 1/8 in 90 Grit Fine MTO,Stock 38A M/F W200 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624544
3/4 in 3/4 in 60 Grit Medium MTO 38A M W204 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624549
3/4 in 1 in 60 Grit Medium Stock 38A M W205 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624550
3/4 in 2 in 60 Grit Medium MTO,Stock 38A M W208 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624553
1 in 1/4 in 60 Grit Medium MTO,Stock 38A M W216 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624562
1 in 1/2 in 60 Grit Medium Stock 38A M W218 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624564
1 in 1 in 60 Grit Medium Stock 38A M W220 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624566
1 in 1-1/2 in 60 Grit Medium MTO 38A M W221 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624567
1 in 2 in 60 Grit Medium Stock 38A M W222 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624569
1-1/4 in 1-1/4 in 60 Grit Medium MTO,Stock 38A M W230 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624578
1-1/2 in 1/4 in 60 Grit Medium Stock 38A M W235 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624583
1-1/2 in 1/2 in 60 Grit Medium Stock 38A-M W236 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624585
1-1/2 in 1 in 60 Grit Medium Stock 38A M W237 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624587
1-1/2 in 1-1/2 in 60 Grit Medium Stock 38A M W238 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624588
3/4 in 2-1/2 in 36 Grit Coarse Stock 38A CRS A1 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624374
1 in 2-3/4 in 60 Grit Medium Stock 38A M A3 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624378
1-1/4 in 1-1/4 in 60 Grit Medium Stock 38A M A4 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624380
3/4 in 1-1/8 in 60 Grit Medium Stock 38A M A5 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624382
7/8 in 2 in 36 Grit Coarse Stock 38A CRS A11 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624384
11/16 in 1-1/4 in 60 Grit Medium Stock 38A M A12 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624388
1-1/8 in 1-1/8 in 60 Grit Medium MTO 38A M A13 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624389
11/16 in 7/8 in 60 Grit Medium MTO 38A M A14 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624390
1/4 in 1-1/16 in 60 Grit Medium Stock 38A M A15 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624391
1 in 1 in 60 Grit Medium Stock 38A M A21 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624392
3/4 in 1 in 60 Grit Medium Stock 38A M A23 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624394
1/4 in 3/4 in 60 Grit Medium Stock 38A M A24 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624395
1 in BALL 60 Grit Medium Stock 38A M A25 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624396
5/8 in BALL 60 Grit Medium Stock 38A M A26 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624397
1-3/8 in 1 in 60 Grit Medium MTO,Stock 38A M A31 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Recommended speeds are for standard shank length of 1-3/4" (45mm), maximum overhang 3/8" (10mm). 61463624399
1-1/2 in 3/8 in 60 Grit Medium MTO,Stock 38A M A34 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624402
1-5/8 in 3/8 in 60 Grit Medium Stock 38A M A36 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624404
1-1/4 in 1/4 in 60 Grit Medium MTO,Stock 38A M A37 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624405
1 in 1 in 60 Grit Medium Stock 38A M A38 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624406
3/4 in 3/4 in 60 Grit Medium Stock 38A M A39 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624407
3/4 in BALL 60 Grit Medium MTO 38A M A40 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624408
5/8 in 5/8 in 60 Grit Medium MTO 38A M B41 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624410
1/2 in 3/4 in 60 Grit Medium Stock 38A M B42 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624412
1/4 in 5/16 in 60 Grit Medium MTO 38A M B43 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624413
7/32 in 3/8 in 60 Grit Medium Stock 38A M B44 E5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624414
3/16 in 5/16 in 60 Grit Medium MTO 38A M B45 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624415
1/8 in 5/16 in 60 Grit Medium MTO 38A M B46 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624416
7/16 in 3/4 in 60 Grit Medium MTO 38A M B51 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624418
3/8 in 3/4 in 60 Grit Medium Stock 38A M B52 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624419
3/8 in 3/4 in 60 Grit Medium Stock 38A M B52 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624420
3/8 in 3/4 in 90 Grit Fine Stock 38A M/F B52 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624422
5/16 in 5/8 in 60 Grit Medium Stock 38A M B53 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624423
1/4 in 1/2 in 60 Grit Medium MTO 38A M B54 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624424
1/2 in 1/2 in 60 Grit Medium Stock 38A M B131 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 61463624475
