Merit 86A Type 52 Mounted Point

A mounted wheel, or mounted point, is a small grinding wheel permanently fastened to its own spindle. They are used in a multitude of operations in almost every industry and on a variety of machines. Extensively used in tool and die shops, aerospace and foundries for removing parting lines, deburring, and finishing. Mounted wheels come in an extensive numbers of shapes and grit sizes to satisfy all of these applications.

Icon of a abrasive
Abrasive AO
Icon of a wheel
Wheel Type Type 52

Features and benefits

Sharp versatile 86A aluminum oxide grain is free cutting and resists burn

Excellent form holding compared to more friable white aluminum oxides

For best performance, always run at the maximum allowable speed

Medium grit for blending and deburring

Part Specifications

Where to Buy
Customise columns
Product SpecsDownload as CSV
Diameter
Thickness
Grit Size
Sanding Grade
Inventory Type
External Spec
Subshape
SpindleType
Abrasive
Wheel Type
RPM Speed Guideline
Part Number
3/8 in BALL 80 Grit Medium Stock 86A80-SVBEM B122 I6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645360
3/4 in 1/8 in 80 Grit Medium Stock 86A80-SVBEM W200 I6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645356
1 in 1 in 80 Grit Medium Stock 86A80-SVBEM W220 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645359
3/4 in 3/16 in 80 Grit Medium Stock 86A80-SVBEM B81 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645347
3/8 in 3/4 in 80 Grit Medium Stock 86A80-SVBEM W177 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645355
1/2 in 1/2 in 80 Grit Medium Stock 86A80-SVBEM W185 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645354
1/4 in 1/2 in 80 Grit Medium Stock 86A80-SVBEM W163 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645346
1 in 1 in 80 Grit Medium Stock 86A80-SVBEM A38 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645345
1-1/2 in 1/4 in 80 Grit Medium Stock 86A80-SVBEM W235 M4A 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645343
1/4 in 1/2 in 80 Grit Medium Stock 86A80-SVBEM B135 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645342
1 in BALL 80 Grit Medium Stock 86A80-SVBEM A25 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645341
3/4 in 1-1/8 in 80 Grit Medium Stock 86A80-SVBEM A5 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645339
1/2 in BALL 80 Grit Medium Stock 86A80-SVBEM B121 J6 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645338
5/16 in 5/8 in 80 Grit Medium Stock 86A80-SVBEM B53 I2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645340
3/4 in 2-1/2 in 80 Grit Medium Stock 86A80-SVBEM A1 N9 1/4 X 1 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645335
1/8 in 3/8 in 80 Grit Medium Stock 86A80-SVBEM B97 D5 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645337
7/8 in 2 in 80 Grit Medium Stock 86A80-SVBEM A11 N4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645336
1 in 2-3/4 in 80 Grit Medium Stock 86A80-SVBEM A3 N9 1/4 X 1 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645333
3/8 in 3/4 in 80 Grit Medium Stock 86A80-SVBEM B52 J2 1/8 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645334
11/16 in 1-1/4 in 80 Grit Medium MTO 86A80-SVBEM A12 M4 1/4 X 1-1/2 Aluminum Oxide Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 69078645344

Product Uses

Industries

Applications

Materials

Machines

Other Recommended Products

Norton Vortex Rapid Prep Mini Flap Disc - TR attachment - 2" - Coarse Grit
icon_mark_gray Best

Norton Vortex Rapid Prep CA TR (Type III) Fiberglass Non-Woven Flat Flap Disc

Norton Vortex Rapid Prep CA TR (Type III) Fiberglass Non-Woven Flat Flap Disc
Norton Vortex Rapid Prep Mini Flap Disc - TR attachment - 2" - Fine Grit
icon_mark_gray Best

Norton Vortex Rapid Prep AO TR (Type III) Fiberglass Non-Woven Flat Flap Disc

Norton Vortex Rapid Prep AO TR (Type III) Fiberglass Non-Woven Flat Flap Disc
Norton High Strength Aluminum Oxide Non-Woven Quick-Change Discs - TR Attachement
icon_mark_gray Better

Merit High Strength AO TR (Type III) Non-Woven Quick-Change Disc

Merit High Strength AO TR (Type III) Non-Woven Quick-Change Disc

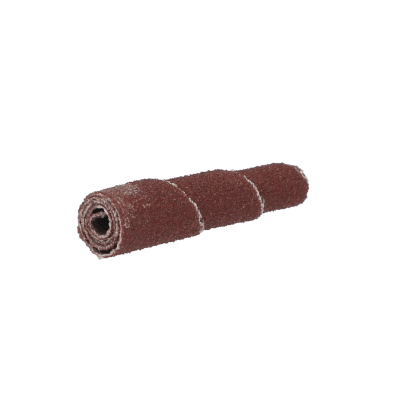

Norton Metal Aluminum Oxide Spiral Roll - 3/8" x 1 1/2" x 1/8" - P80
