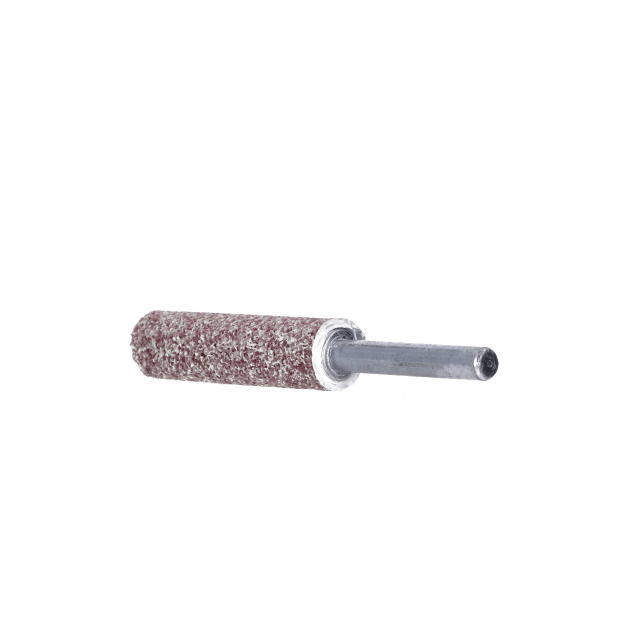

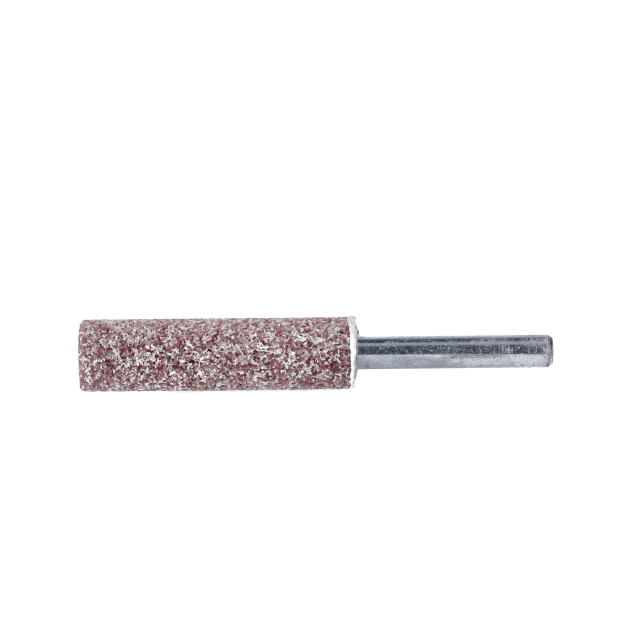

Norton Quantum 5NQM Type 52 Mounted Point
Features and benefits
Quantum grain with unique, engineered ceramic grain and shape, specifically developed for high-volume, high-speed alloy grinding operations
Minimal loading and heat build-up; provide up to 33% longer life and 37% better metal removal rates versus other ceramic points
Versatile; optimized for all low-, medium-, and high-force vitrified applications
Best choice for high-volume, coarse grit, rapid metal removal and surface prep applications
Part Specifications
Where to Buy|
Diameter
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
External Spec
|
Subshape
|
SpindleType
|
Abrasive
|
Wheel Type
|
RPM Speed Guideline
|
Face Profile
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 in | 2-1/2 in | 36 Grit | Coarse | Stock | A1 36 QUANTUM OIL AND GAS | A1 | N9 1/4 X 1 | Ceramic Alumina | Type 52 | Max. RPM valid to 1/2" overhang. See package insert for other overhangs. | - | 61463686139 |
| 1 in | 2-3/4 in | 36 Grit | Coarse | Stock | A3 36 QUANTUM OIL AND GAS | A3 | N9 1/4 X 1 | Ceramic Alumina | Type 52 | Max. RPM valid to 1/2" overhang. See package insert for other overhangs. | - | 61463686138 |
| 1/2 in | 2 in | 36 Grit | Coarse | Stock | W189 36 QUANTUM OIL AND GAS | W189 | N4 1/4 X 1-1/2 | Ceramic Alumina | Type 52 | Max. RPM valid to 1/2" overhang. See package insert for other overhangs. | - | 61463686137 |
| 1-7/8 in | 5/8 in | 36 Grit | Coarse | Stock | A36 36 QUANTUM OIL AND GAS | - | M4A 1/4 X 1-1/2 | Ceramic Alumina | Type 52 | Max. RPM valid to 1/2" overhang. See package insert for other overhangs. | X FACE described by drawing | 66253145562 |
| 3/8 in | 1-1/4 in | 36 Grit | Coarse | Stock | W179 36 QUANTUM OIL AND GAS | W179 | J6 1/4 X 1-1/2 | Ceramic Alumina | Type 52 | Max. RPM valid to 1/2" overhang. See package insert for other overhangs. | - | 69083154055 |
| 1 in | 1/2 in | 36 Grit | Coarse | Stock | W218 36 QUANTUM OIL AND GAS | W218 | M4A 1/4 X 1-1/2 | Ceramic Alumina | Type 52 | Max. RPM valid to 1/2" overhang. See package insert for other overhangs. | - | 69083154061 |
