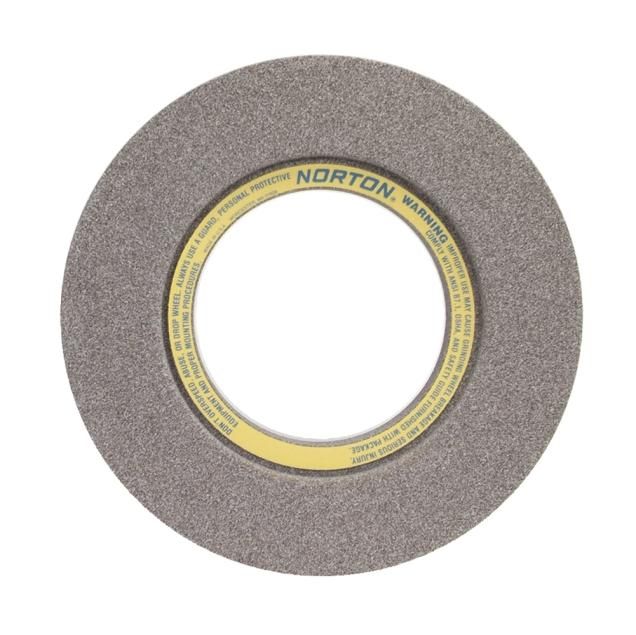

Norton Gemini 59A Type 07 Surface Grinding Wheel
Abrasive
AO
Wheel Type
Type 07
Features and benefits
Type 07 recessed two sides wheel with specially blended aluminum oxide abrasive for many surface grinding applications
Porous bond for cool cutting on medium to wide contact areas; high chip clearance and stock removal
Faster grinding rates remove stock; lower rates produce finer finishes
Good choice when a broad range of parts are ground on one machine
Part Specifications
Where to BuyProduct SpecsDownload as CSV
|
Diameter
|
Recess B Diameter
|
Recess B Depth
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 in | 12-1/4 in | 3/4 in | 10 in | 3 in | 46 Grit | Coarse | Stock | 1450 | GEMINI 46-I | Aluminum Oxide | Type 07 | 66253058315 |
