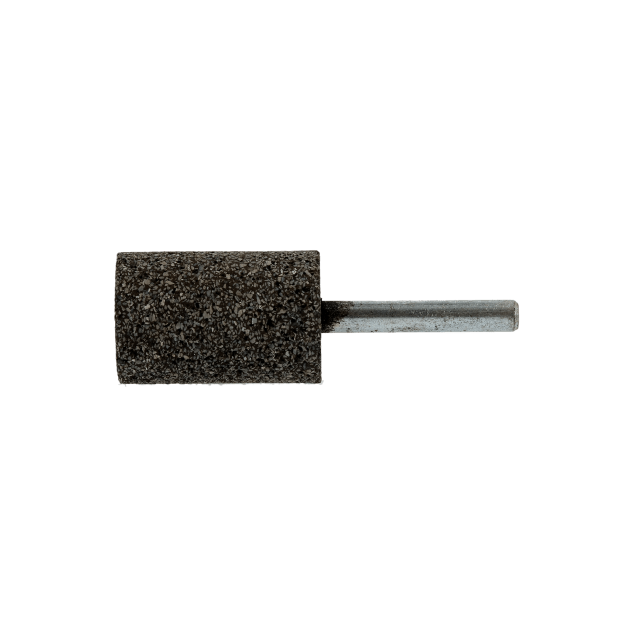

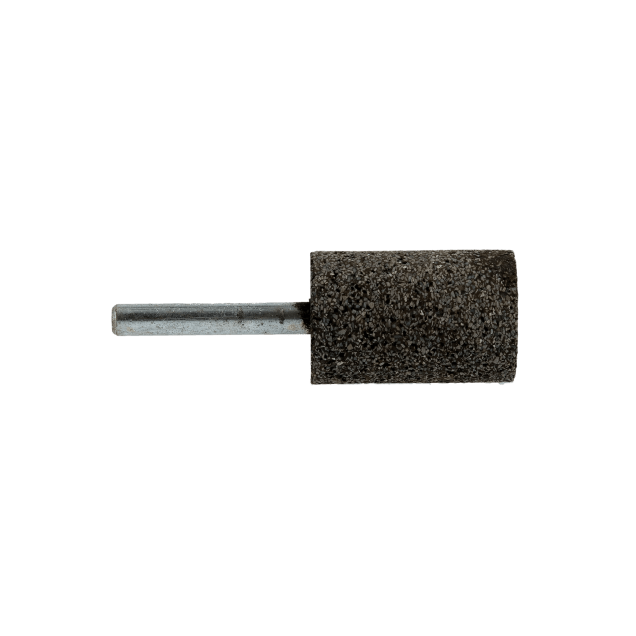

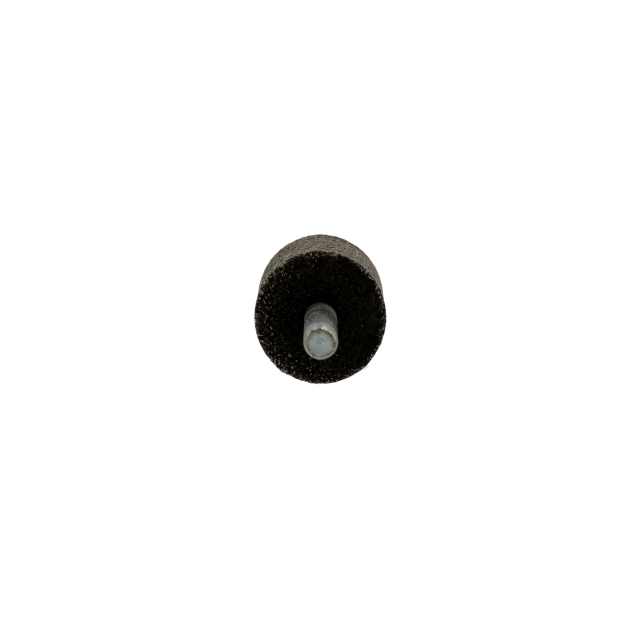

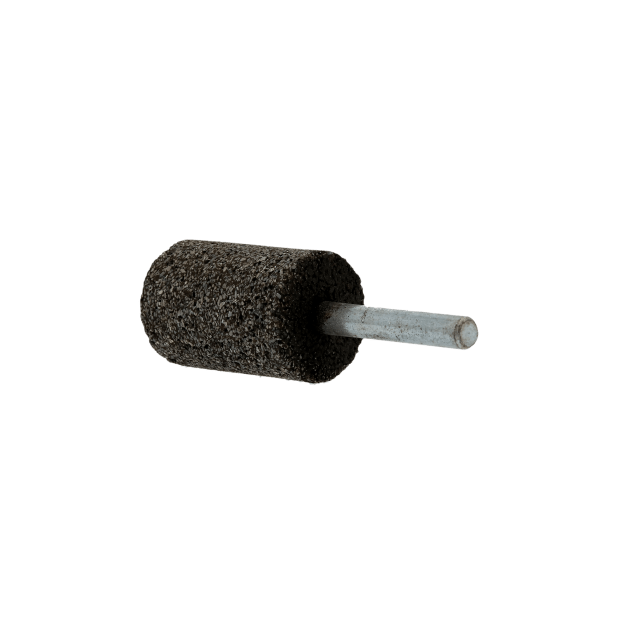

Norton NorZon NZ Type 52 Mounted Point

Clean your machine tools quickly and easily with this NorZon mounted point. Its strong grain and specially formulated organic bond reduce wheel vibration, minimize chatter while grinding, and extend the mounted point's working life by up to a factor of four. Use this mounted point's tough zirconia alumina abrasive surface to achieve fast stock removal and cut twice as fast as standard wheels when working on steel, iron, and super alloys. It's also ideal for removing parting lines, fins, and small risers from fresh castings as well as smoothing out weld joints.

Icon of a abrasive
Abrasive ZA
Icon of a wheel
Wheel Type Type 52

Features and benefits

Zirconia alumina abrasive blend for 2X faster cut rate than standard aluminum oxide, an aggressive, free cut, more parts cleaned in less time to substantially increase productivity

Strong grain and specially formulated organic bond provide 4X greater life than aluminum oxide points, while reducing vibration and wheel chatter

Ideal for removing parting lines, fins and small risers from castings, and smoothing and blending of welded areas

Best choice for fast stock removal and long life on steels, super alloys, and irons

Part Specifications

Where to Buy
Customise columns
Product SpecsDownload as CSV
Diameter
Thickness
Grit Size
Sanding Grade
Inventory Type
External Spec
Subshape
SpindleType
Abrasive
Wheel Type
RPM Speed Guideline
Packaging Quantity
Part Number
1 in 1 in 24 Grit Coarse Stock NZ242-UBXR1 W220 M4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463617520
1 in 2 in 24 Grit Coarse Stock NZ242-UBXR1 W222 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616475
1 in 1-1/2 in 24 Grit Coarse Stock NZ242-UBXR1 W221 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616473
3/4 in 2 in 24 Grit Coarse Stock NZ242-UBXR1 W208 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. 5 61463616471
5/8 in 2 in 24 Grit Coarse Stock NZ242-UBXR1 W197 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616467
1/2 in 2 in 24 Grit Coarse Stock NZ242-UBXR1 W189 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616465
7/8 in 2 in 24 Grit Coarse Stock NZ242-UBXR1 A11 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616463
1 in 2-3/4 in 24 Grit Coarse Stock NZ242-UBXR1 A3 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616459
3/4 in 2-1/2 in 24 Grit Coarse Stock NZ242-UBXR1 A1 N4 1/4 X 1-1/2 Zirconia Alumina Type 52 Max. RPM valid to 1/2" overhang. See package insert for other overhangs. - 61463616457

Product Uses

Industries

Applications

Materials

Machines
