Norton Product Tiers
Best
Our BEST tier products are designed for the customer who is seeking the highest productivity at the lowest total cost.
Better
Our BETTER tier products provide an excellent blend of performance and price.
Good
Our GOOD tier products promise the highest quality you expect from the Norton name with a low initial price.

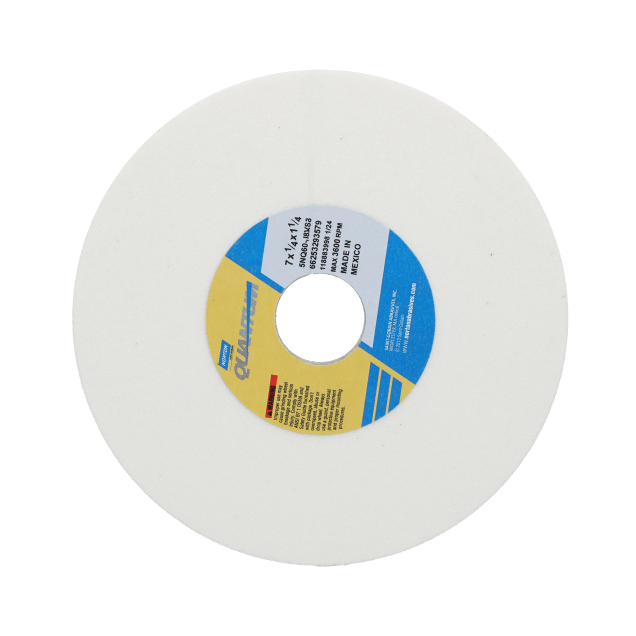

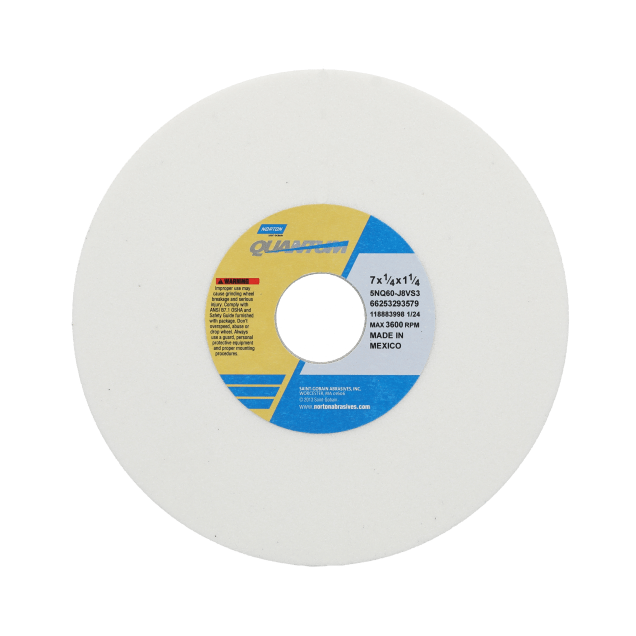

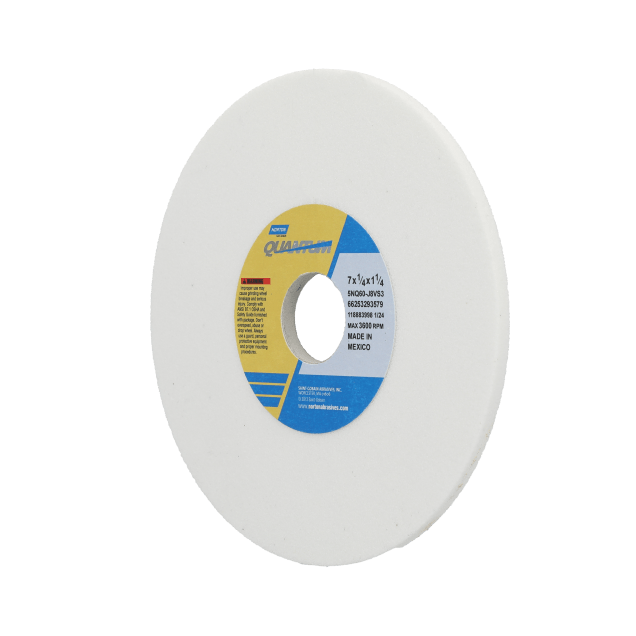

Norton Quantum 5NQ Type 01 Toolroom Wheel
Features and benefits
Type 01 straight wheels with revolutionary, proprietary, engineered ceramic grain shape and chemistry for all low-, medium- and high-force applications ranging from cast iron, to stainless steel, and hard-to-grind Inconel and titanium
Proven tough vitrified bond stands up to extreme grinding forces; perform well on old and new CNC cutting tool, cylindrical. and surface grinding machines
33% to 100% longer life, 30% higher MRR (material removal rate), and 15% lower threshold power versus competitive ceramic products
Exceptional choice for precision production grinding; maximum versatility and productivity, with lowest total costs
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 1-1/4 in | 1/4 in | 46 Grit | Coarse | MTO | 3600 | 5NQ46-IVS | Ceramic Alumina | Type 01 | 66253350690 |
| 7 in | 1-1/4 in | 1/4 in | 60 Grit | Medium | Stock | 3600 | 5NQ60-J8VS3 | Ceramic Alumina | Type 01 | 66253293579 |
| 14 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2320 | 5NQ60-J8VS3 | Ceramic Alumina | Type 01 | 69083159124 |
| 14 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2320 | 5NQ46-J8VS3 | Ceramic Alumina | Type 01 | 69083159120 |
| 14 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2320 | 5NQ60-G16VS3P | Ceramic Alumina | Type 01 | 69083159122 |
| 14 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2320 | 5NQ46-I8VS3 | Ceramic Alumina | Type 01 | 69083159119 |
| 8 in | 1-1/4 in | 3/4 in | 60 Grit | Medium | Stock | 3600 | 5NQ60-J8VS3 | Ceramic Alumina | Type 01 | 69083159114 |
| 12 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2705 | 5NQ46-I8VS3 | Ceramic Alumina | Type 01 | 69083159115 |
| 12 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2705 | 5NQ60-J8VS3 | Ceramic Alumina | Type 01 | 69083159118 |
| 12 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2705 | 5NQ60-G16VS3P | Ceramic Alumina | Type 01 | 69083159117 |
| 12 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2705 | 5NQ46-J8VS3 | Ceramic Alumina | Type 01 | 69083159116 |
| 8 in | 1-1/4 in | 3/4 in | 60 Grit | Medium | Stock | 3105 | 5NQ60-G12VS3P | Ceramic Alumina | Type 01 | 69083159113 |
| 8 in | 1-1/4 in | 3/4 in | 46 Grit | Coarse | Stock | 3600 | 5NQ46-J8VS3 | Ceramic Alumina | Type 01 | 69083159112 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 5NQ60-J8VS3 | Ceramic Alumina | Type 01 | 69083159110 |
| 8 in | 1-1/4 in | 3/4 in | 46 Grit | Coarse | Stock | 3105 | 5NQ46-I8VS3 | Ceramic Alumina | Type 01 | 69083159111 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3105 | 5NQ60-G12VS3P | Ceramic Alumina | Type 01 | 69083159109 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3105 | 5NQ46-I8VS3 | Ceramic Alumina | Type 01 | 69083159107 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 5NQ46-J8VS3 | Ceramic Alumina | Type 01 | 69083159108 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 5NQ60-J8VS3 | Ceramic Alumina | Type 01 | 69083159106 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 5NQ60-G12VS3P | Ceramic Alumina | Type 01 | 69083159105 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 5NQ46-I8VS3 | Ceramic Alumina | Type 01 | 69083159103 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 5NQ46-J8VS3 | Ceramic Alumina | Type 01 | 69083159104 |
