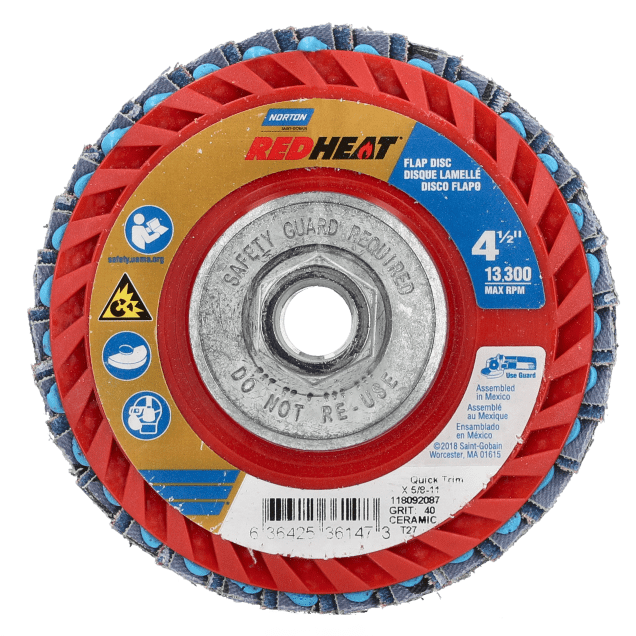

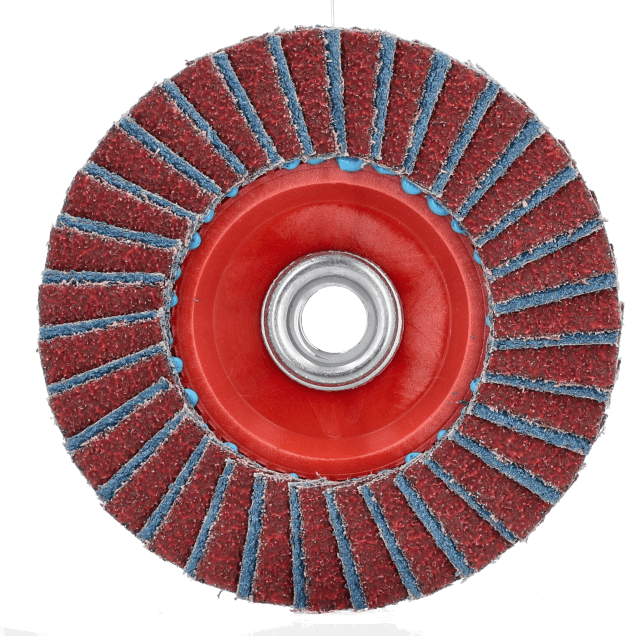

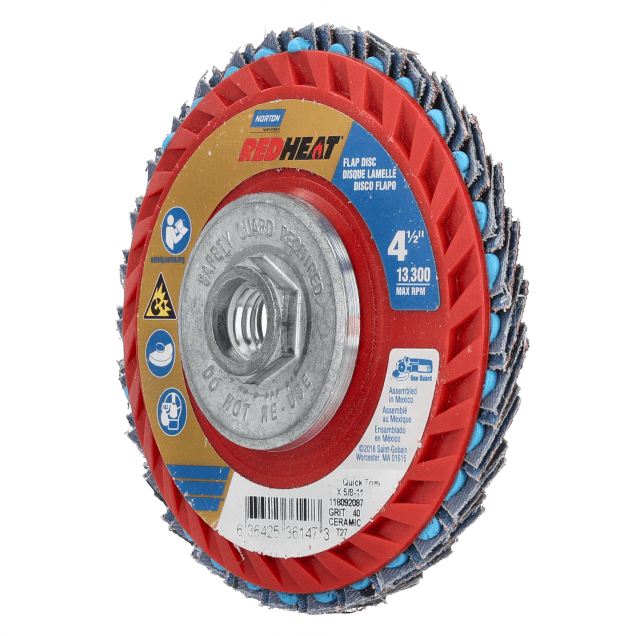

Norton Red Heat CA Arbor Thread Plastic Flat Flap Disc
Abrasive
CA
Attachment
5/8 - 11
Backing Material
Polyester Y wt.
Features and benefits
Type 27 flat flap disc with premium ceramic alumina and zirconia alumina abrasive blend for excellent performance and efficiencies on mild carbon steel and ferrous metal/cast iron applications
Flat polyester/cotton flaps are designed to be used at a 0 to 15 degree angle on flat surfaces
Quick trim flexible plastic backing plate offers some additional conformability and sets the industry standard for trimmability
Excellent choice for coarse grit blending, deburring, and stock removal
Part Specifications
Where to BuyProduct SpecsDownload as CSV
|
Diameter
|
Length
|
Width
|
Arbor Hole
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Abrasive
|
Cap Code
|
Packaging Quantity
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 25 mm | 38 mm | 0 in | 40 Grit | Coarse | Stock | Ceramic Alumina | R961/R842 | 5 | 63642536150 |
| 4-1/2 in | 18 mm | 25 mm | 0 in | 60 Grit | Coarse | Stock | Ceramic Alumina | R961/R842 | 5 | 63642536148 |
| 4-1/2 in | 18 mm | 25 mm | 0 in | 40 Grit | Coarse | Stock | Ceramic Alumina | R961/R842 | 5 | 63642536147 |
| 5 in | 20 mm | 30 mm | 0 in | 60 Grit | Coarse | Stock | Ceramic Alumina | R961/R842 | 5 | 66254491942 |
| 5 in | 20 mm | 30 mm | 0 in | 40 Grit | Coarse | Stock | Ceramic Alumina | R961/R842 | 5 | 66254491941 |
| 7 in | 25 mm | 38 mm | 0 in | 60 Grit | Coarse | MTO | Ceramic Alumina | R983 | 10 | 66261132836 |
