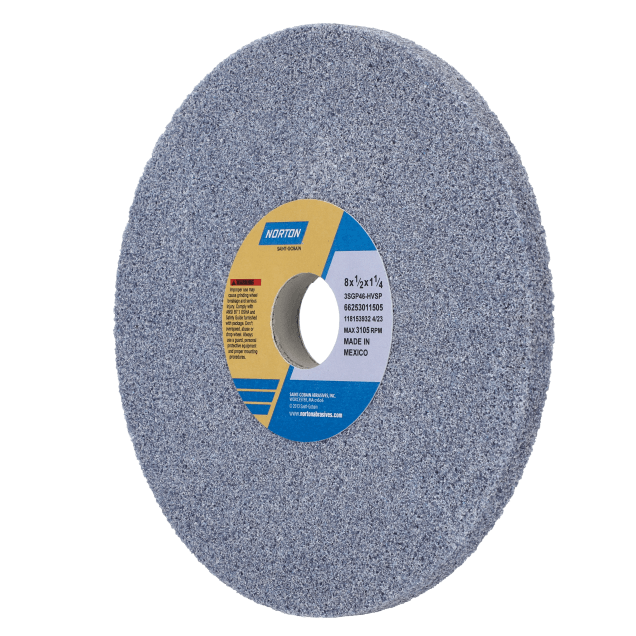

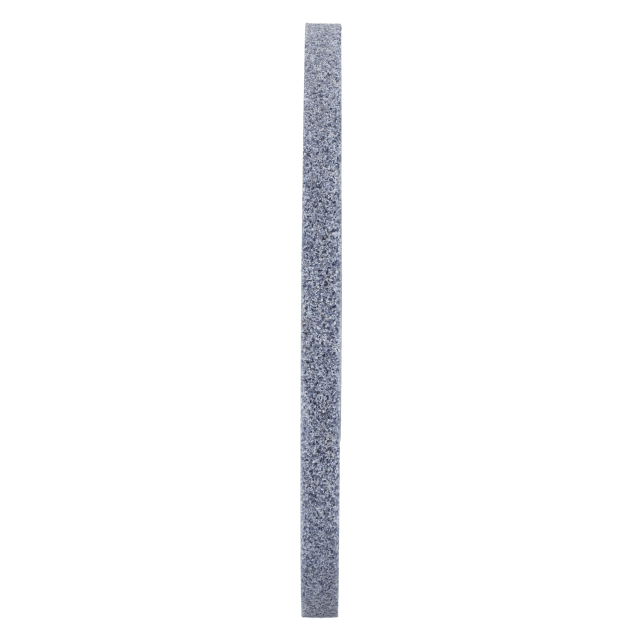

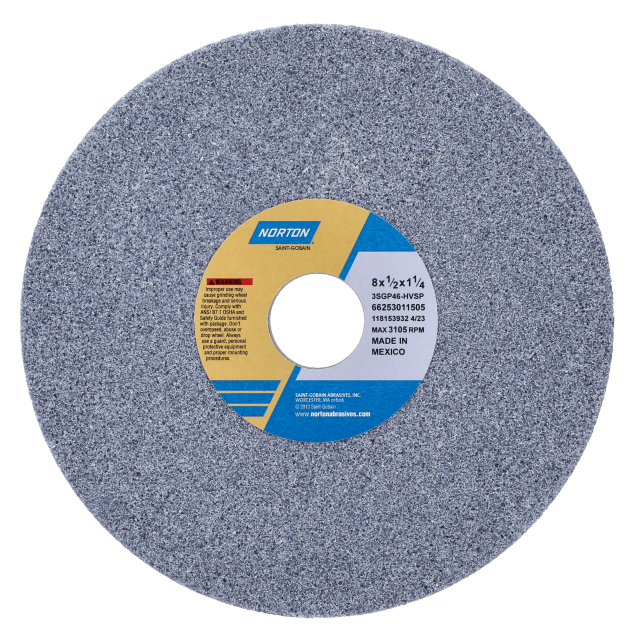

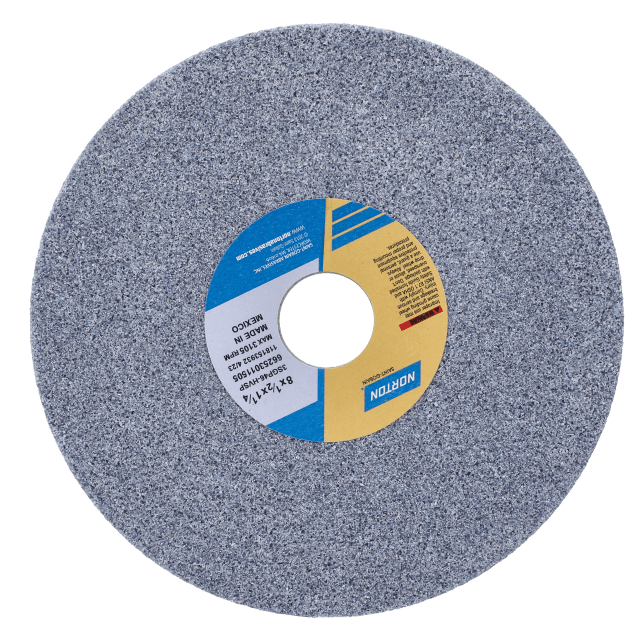

Norton SG 3SGP Type 01 Toolroom Wheel
Features and benefits
Type 01 straight wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal and cool, superior cutting; last 3 - 5X longer than aluminum oxide wheels; 2X rough stock removal vs. conventional abrasives
Proven porous vitrified bond, especially recommended for toolroom and surface grinding on medium to wide areas of contact and heat sensitive materials
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Recommended for: narrow area of contact, high grinding forces and very difficult to grind steels that have a very high hardness or tensile strength
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 3SGP46-GVSP | Ceramic Alumina | Type 01 | 66252911717 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 3SGP46-JVH | Ceramic Alumina | Type 01 | 66253013796 |
| 8 in | 1-1/4 in | 3/4 in | 46 Grit | Coarse | Stock | 3600 | 3SGP46-JVH | Ceramic Alumina | Type 01 | 66253013792 |
| 8 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3105 | 3SGP46-HVSP | Ceramic Alumina | Type 01 | 66253011505 |
| 14 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2320 | 3SGP46-JVH | Ceramic Alumina | Type 01 | 66253313976 |
| 14 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 1800 | 3SGP46-HVSP | Ceramic Alumina | Type 01 | 66253307025 |
| 14 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 1800 | 3SGP46-GVSP | Ceramic Alumina | Type 01 | 66253306780 |
| 12 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2710 | 3SGP60-GVSP | Ceramic Alumina | Type 01 | 66253215030 |
