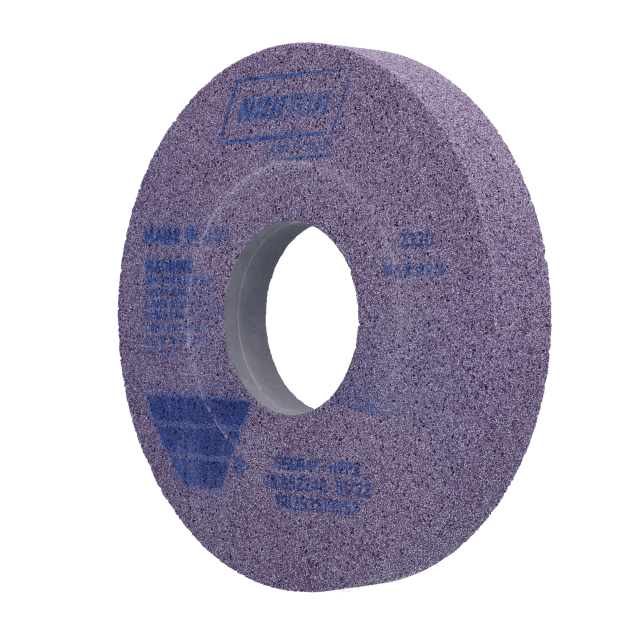

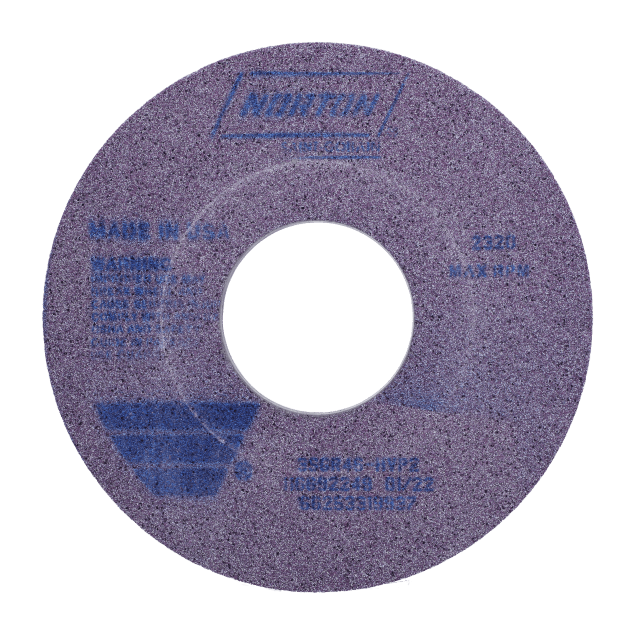

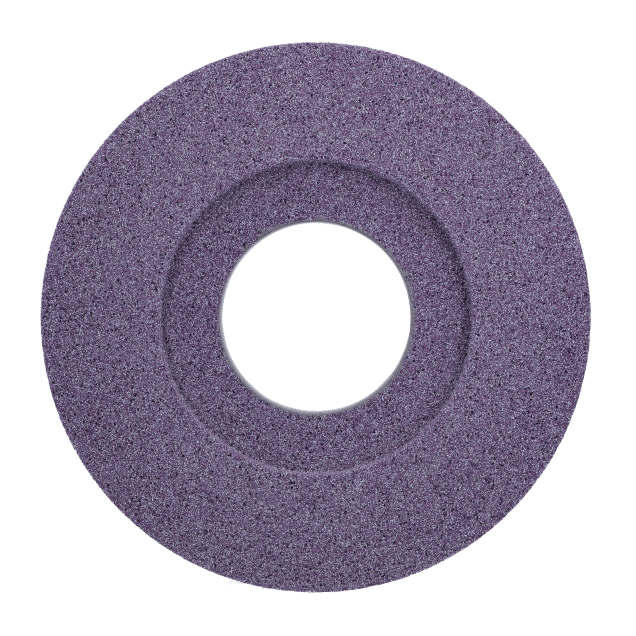

Norton SG 3SGR Type 05 Toolroom Wheel
Features and benefits
Type 05 recessed one side wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal, cool, superior cutting; 3 - 5X more life than aluminum oxide wheels; 2X rough stock removal vs conventional abrasives
Controlled porosity bond for increased chip clearance and maximum coolant flow; reduced loading; extremely cool cutting wet or dry in heat sensitive applications
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Exceptional choice for high productivity, low total per-part grinding cost on cylindrical, and surface grinders
Part Specifications
Where to Buy|
Diameter
|
Recess B Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | Stock | 3600 | 3SGR46-HVP2 | Ceramic Alumina | Type 05 | 66252916228 |
| 14 in | 8 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 2320 | 3SGR60-HVP2 | Ceramic Alumina | Type 05 | 66253319956 |
| 14 in | 8 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2320 | 3SGR46-HVP2 | Ceramic Alumina | Type 05 | 66253319954 |
| 14 in | 8 in | 5 in | 2 in | 46 Grit | Coarse | Stock | 2320 | 3SGR46-HVP2 | Ceramic Alumina | Type 05 | 66253319937 |
| 14 in | 8 in | 5 in | 2 in | 46 Grit | Coarse | MTO | 2320 | 3SGR46-GVP2 | Ceramic Alumina | Type 05 | 66253319936 |
| 12 in | 7-1/2 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2710 | 3SGR46-HVP2 | Ceramic Alumina | Type 05 | 66253220904 |
