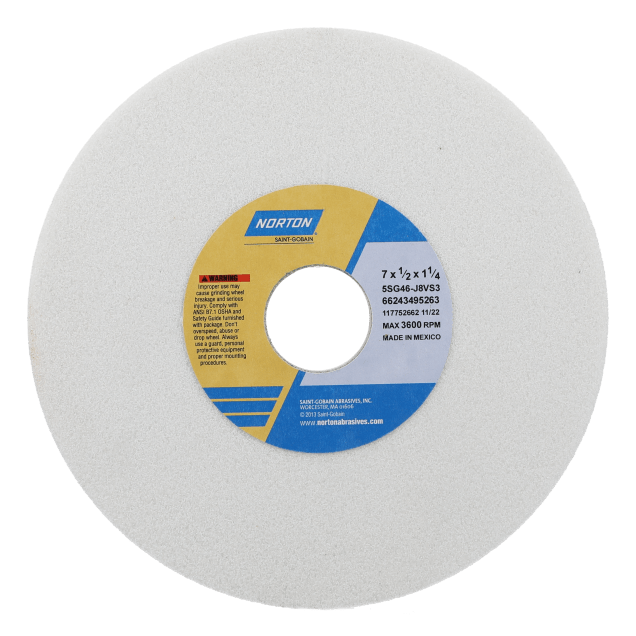

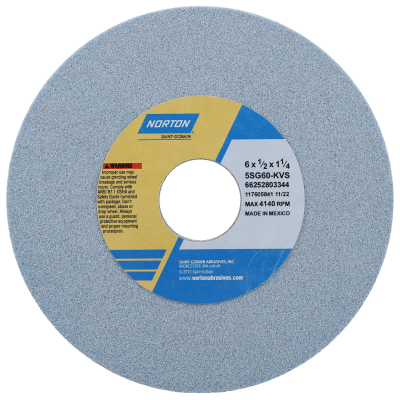

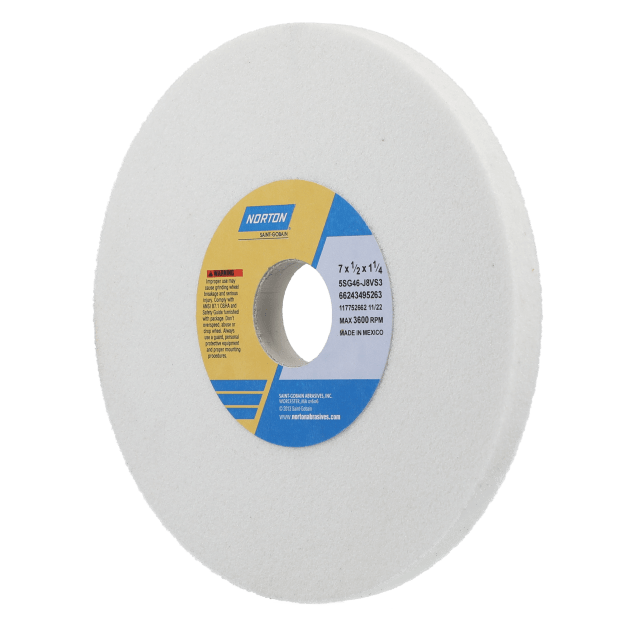

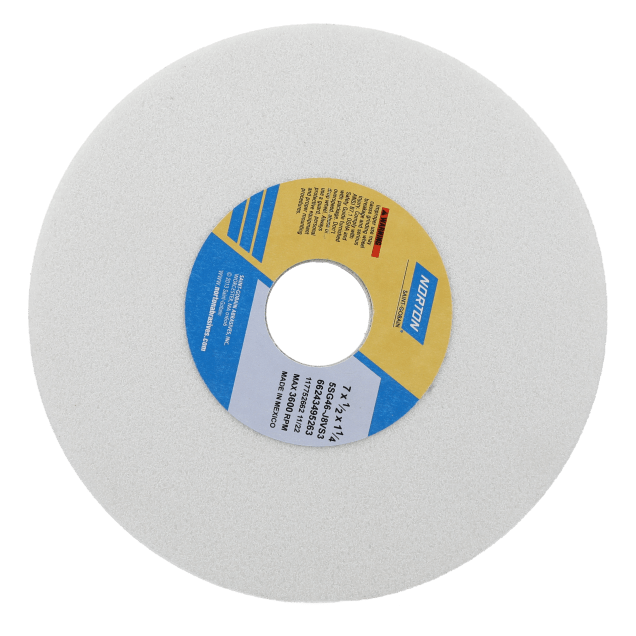

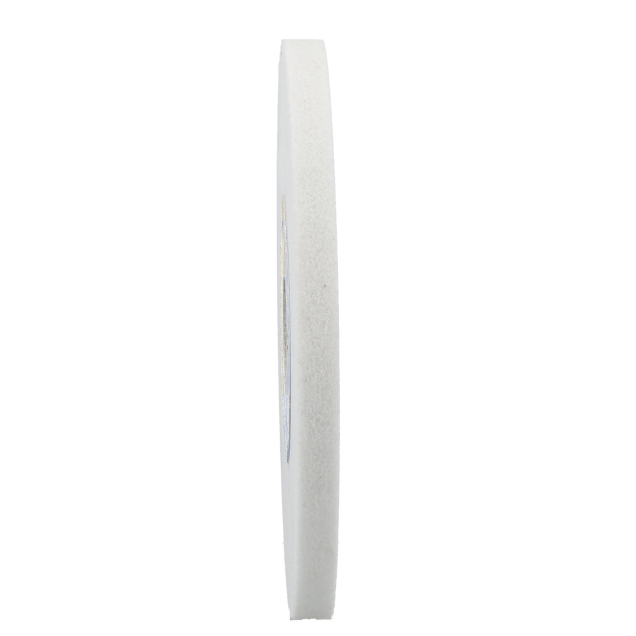

Norton SG Vitrium3 5SG Type 01 Toolroom Wheel
Features and benefits
Type 01 straight wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal and cool, superior cutting; last 3 - 5X longer than aluminum oxide wheels; 2X rough stock removal vs. conventional abrasives
High-performance Vitrium3 bond is cool cutting with exceptional form holding; recommended for toolroom, cylindrical, and surface grinding
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Outstanding choice for high productivity, low total per-part grinding cost
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|
| 12 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2705 | 5SG46-I8VS3 | Ceramic Alumina | Type 01 | 66243495319 |
| 14 in | 5 in | 1 in | 46 Grit | Coarse | MTO | 2320 | 5SG46-J8VS3 | Ceramic Alumina | Type 01 | 66243495320 |
| 8 in | 1-1/4 in | 3/4 in | 46 Grit | Coarse | MTO | 3600 | 5SG46-J8VS3 | Ceramic Alumina | Type 01 | 66243495315 |
| 12 in | 3 in | 1 in | 46 Grit | Coarse | Stock | 2705 | 5SG46-J8VS3 | Ceramic Alumina | Type 01 | 66243495317 |
| 7 in | 1-1/4 in | 1/2 in | 46 Grit | Coarse | Stock | 3600 | 5SG46-J8VS3 | Ceramic Alumina | Type 01 | 66243495263 |
| 7 in | 1-1/4 in | 1/4 in | 60 Grit | Medium | MTO | 3600 | 5SG60-I8VS3 | Ceramic Alumina | Type 01 | 66243495259 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | MTO | 3600 | 5SG60-JVS3 | Ceramic Alumina | Type 01 | 66253387228 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | MTO | 3600 | 5SG60-I8VS3 | Ceramic Alumina | Type 01 | 66253375045 |
Product Uses
Industries
Materials
