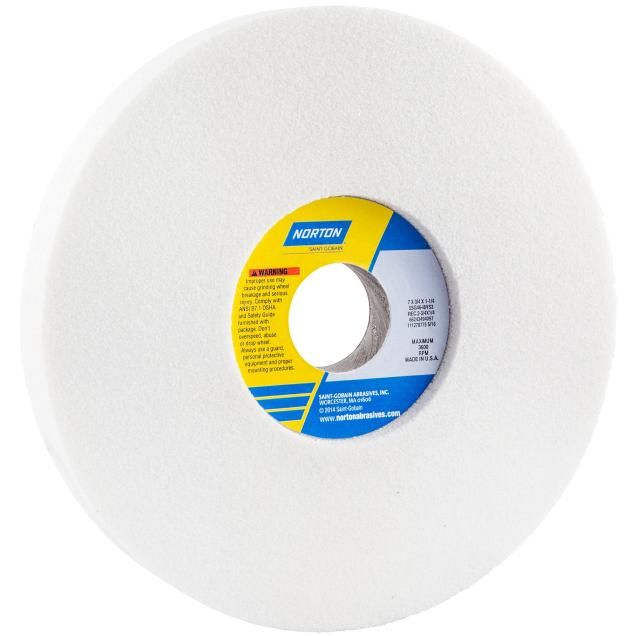

Norton SG Vitrium3 5SG Type 05 Toolroom Wheel
Features and benefits
Type 05 recessed one side wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal, cool, superior cutting; 3 - 5X more life than aluminum oxide wheels; 2X rough stock removal vs conventional abrasives
High-performance Vitrium3 bond is a high-speed, cool cutting bond with exceptional form holding; recommended for toolroom, cylindrical, and surface grinding
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Outstanding choice for high productivity, low total per-part grinding cost
Part Specifications
Where to Buy|
Diameter
|
Recess B Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 in | 7-1/2 in | 5 in | 1-1/2 in | 60 Grit | Medium | MTO | 2070 | 5SG60-I12VS3P | Ceramic Alumina | Type 05 | 66243495376 |
| 12 in | 7-1/2 in | 5 in | 1-1/2 in | 46 Grit | Coarse | MTO | 2070 | 5SG46-G12VS3P | Ceramic Alumina | Type 05 | 66243495374 |
| 14 in | 8 in | 5 in | 1-1/2 in | 46 Grit | Coarse | Stock | 2320 | 5SG46-I8VS3 | Ceramic Alumina | Type 05 | 66243494106 |
| 8 in | 3-1/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | MTO | 3600 | 5SG46-J8VS3 | Ceramic Alumina | Type 05 | 66243494104 |
| 8 in | 3-1/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | MTO | 3105 | 5SG46-I8VS3 | Ceramic Alumina | Type 05 | 66243494103 |
| 7 in | 3 in | 1-1/4 in | 1 in | 46 Grit | Coarse | MTO | 3600 | 5SG46-I8VS3 | Ceramic Alumina | Type 05 | 66243494101 |
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 60 Grit | Medium | MTO | 3600 | 5SG60-J8VS3 | Ceramic Alumina | Type 05 | 66243494100 |
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | MTO | 3600 | 5SG46-J8VS3 | Ceramic Alumina | Type 05 | 66243494099 |
| 7 in | 2-3/4 in | 1-1/4 in | 1 in | 46 Grit | Coarse | MTO | 3600 | 5SG46-I8VS3 | Ceramic Alumina | Type 05 | 66243494098 |
| 7 in | 2-3/4 in | 1-1/4 in | 3/4 in | 46 Grit | Coarse | MTO | 3600 | 5SG46-I8VS3 | Ceramic Alumina | Type 05 | 66243494097 |
Product Uses
Industries
Materials
Machines
