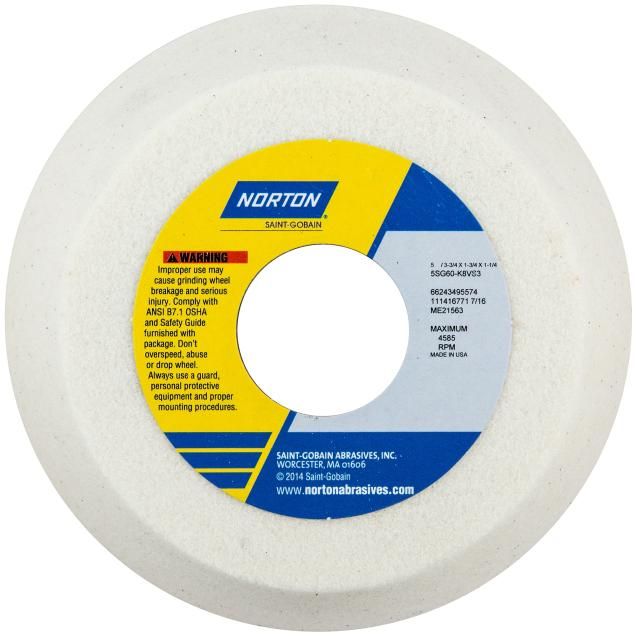

Norton SG Vitrium3 5SG Type 11 Toolroom Wheel
Features and benefits
Type 11 flaring cup wheels with high-performance proprietary ceramic alumina and friable aluminum oxide abrasive blend for cool superior cutting; 3 - 5X more life than aluminum oxide wheels; 2X rough stock removal vs conventional abrasives
High-performance Vitrium3 bond is a high-speed, cool cutting bond with exceptional form holding; recommended for toolroom, cylindrical, and surface grinding
Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production
Outstanding choice for high productivity, low total per-part grinding cost
Part Specifications
Where to Buy|
Diameter
|
Arbor Hole
|
Thickness
|
Back Thickness
|
Rim Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Face Profile
|
Abrasive
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 in | 1-1/4 in | 1-3/4 in | 1/2 in | 1/4 in | 60 Grit | Medium | MTO | 4585 | 5SG60-K8VS3 | Z Face | Ceramic Alumina | 66243495574 |
| 4 in | 1-1/4 in | 1-1/2 in | 1/2 in | 1/4 in | 60 Grit | Medium | MTO | 5730 | 5SG60-J8VS3 | Z Face | Ceramic Alumina | 66243495342 |
| 4 in | 1-1/4 in | 1-1/2 in | 1/2 in | 1/4 in | 46 Grit | Coarse | Stock | 5730 | 5SG46-K8VS3 | Z Face | Ceramic Alumina | 66243495339 |
