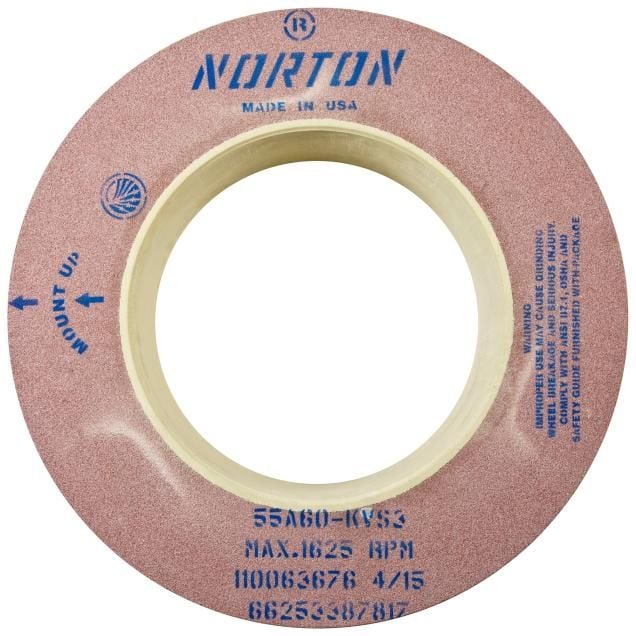

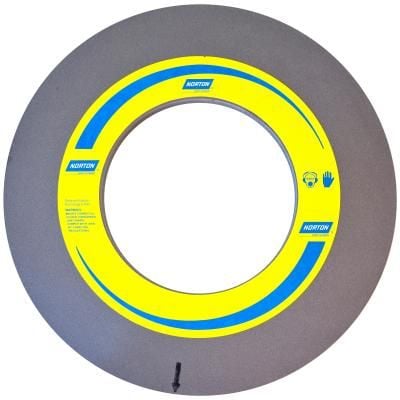

Norton Vitrium3 55A Type 01 Centerless Grinding Wheel


Perform centerless grinding with increased productivity and a lower per-part cost using the Vitrium3 55A AO Type 01 centerless wheel. Crafted using a monocrystalline 55A aluminum oxide abrasive, this straight wheel delivers at least twice the life of common aluminum oxide wheels. Pair it with your centerless plunge and throughfeed surface grinders to tackle a variety of simple- to complex-shaped objects composed of a wide range of materials, including cast, ductile and gray iron, as well as tool, soft- and hard-carbon, and 400-series stainless steels. A Vitrium3 VS3 bond provides excellent form holding for cool cutting during high-speed applications.

Icon of a abrasive
Abrasive AO
Icon of a wheel
Wheel Type Type 01

Features and benefits

Type 01 straight wheel with monocrystalline 55A aluminum oxide offers superior performance on centerless plunge and throughfeed surface grinders with 2 plus times the life of competitive aluminum oxide wheels

Vitrium 3 VS3 bond allows coolest cutting, high-speed, and precise form holding

Ideal for simple- to complex-shaped components, with increased productivity; more quality parts at low cost per part

Better choice when one wheel is used to grind several different materials

Part Specifications

Where to Buy
Customise columns
Product SpecsDownload as CSV
Diameter
Arbor Hole
Thickness
Grit Size
Sanding Grade
Inventory Type
Max Operating Speed
External Spec
Abrasive
Wheel Type
Part Number
24 in 12 in 10 in 80 Grit Medium MTO,Stock 1350 55A80-LVS3 Aluminum Oxide Type 01 66253387828
24 in 12 in 10 in 60 Grit Medium Stock 1350 55A60-KVS3 Aluminum Oxide Type 01 66253387830
24 in 12 in 8 in 60 Grit Medium Stock 1350 55A60-KVS3 Aluminum Oxide Type 01 66253387827
24 in 12 in 8 in 80 Grit Medium Stock 1350 55A80-LVS3 Aluminum Oxide Type 01 66253387825
20 in 12 in 8 in 60 Grit Medium Stock 1625 55A60-KVS3 Aluminum Oxide Type 01 66253387819
24 in 12 in 6 in 80 Grit Medium Stock 1350 55A80-LVS3 Aluminum Oxide Type 01 66253387821
20 in 12 in 6 in 60 Grit Medium Stock 1625 55A60-KVS3 Aluminum Oxide Type 01 66253387817
20 in 12 in 6 in 80 Grit Medium Stock 1625 55A80-LVS3 Aluminum Oxide Type 01 66253387815
