Norton Product Tiers
Best
Our BEST tier products are designed for the customer who is seeking the highest productivity at the lowest total cost.
Better
Our BETTER tier products provide an excellent blend of performance and price.
Good
Our GOOD tier products promise the highest quality you expect from the Norton name with a low initial price.

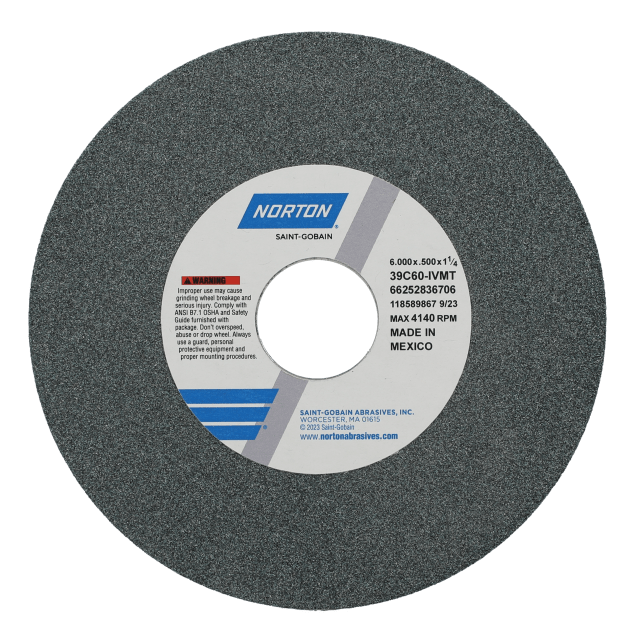

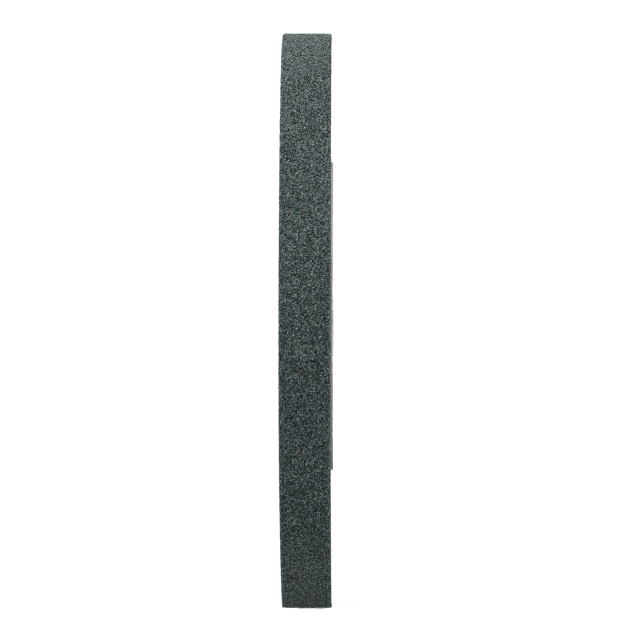

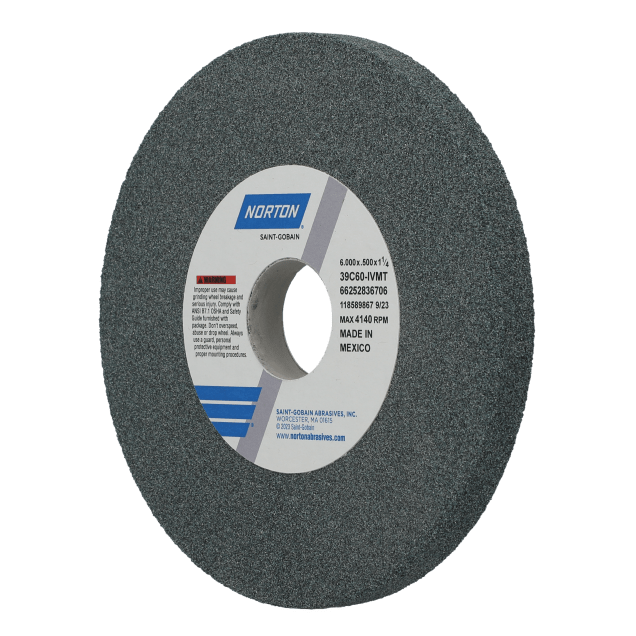

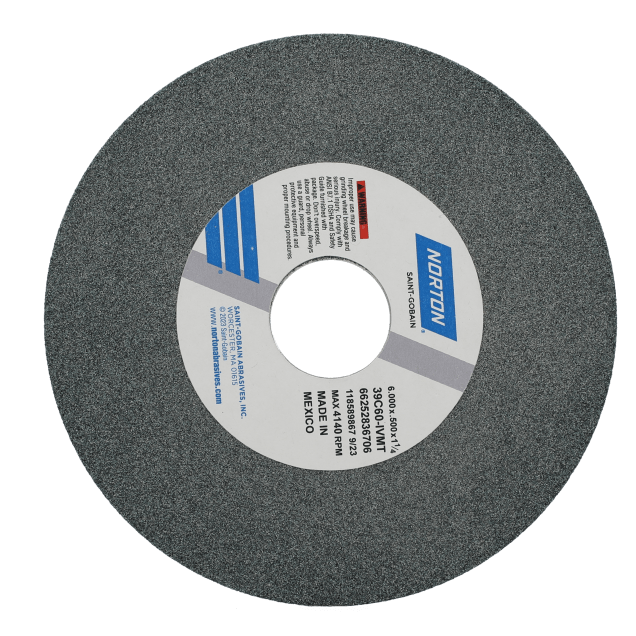

Norton 39C Type 01 Toolroom Wheel
Abrasive
SC
Wheel Type
Type 01
Features and benefits
Type 01 straight wheels with sharp high-purity green silicon carbide abrasive for non-steel applications
Superior vitrified bond specially engineered to maximize the life of silicon carbide abrasives on CNC cutting tool machines, and cylindrical and surface grinders
Use to grind carbide cutting tools, titanium, metal matrix composites, and plasma sprayed materials
Many additional popular sizes and shapes in stock now
Part Specifications
Where to BuyProduct SpecsDownload as CSV
|
Diameter
|
Arbor Hole
|
Thickness
|
Grit Size
|
Sanding Grade
|
Inventory Type
|
Max Operating Speed
|
External Spec
|
Abrasive
|
Wheel Type
|
Color
|
Part Number
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 in | 1-1/4 in | 1/2 in | 100 Grit | Fine | Stock | 3600 | 39C100-IVMT | Silicon Carbide | Type 01 | - | 66252941624 |
| 6 in | 1-1/4 in | 1 in | 80 Grit | Medium | Stock | 4140 | 39C80-IVMT | Silicon Carbide | Type 01 | - | 66252838173 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66252941609 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66252941611 |
| 7 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 39C60-KVMT | Silicon Carbide | Type 01 | - | 66252941613 |
| 7 in | 1-1/4 in | 1/2 in | 80 Grit | Medium | Stock | 3600 | 39C80-JVMT | Silicon Carbide | Type 01 | - | 66252941618 |
| 7 in | 1-1/4 in | 1/2 in | 100 Grit | Fine | Stock | 3600 | 39C100-HVMT | Silicon Carbide | Type 01 | - | 66252941622 |
| 7 in | 1-1/4 in | 1/2 in | 120 Grit | Fine | Stock | 3600 | 39C120-IVMT | Silicon Carbide | Type 01 | - | 66252941632 |
| 7 in | 1-1/4 in | 3/4 in | 80 Grit | Medium | Stock | 3600 | 39C80-JVMT | Silicon Carbide | Type 01 | - | 66252942096 |
| 7 in | 1-1/4 in | 3/4 in | 100 Grit | Fine | Stock | 3600 | 39C100-JVMT | Silicon Carbide | Type 01 | - | 66252942104 |
| 7 in | 1-1/4 in | 1/2 in | 80 Grit | Medium | Stock | 3600 | 39C80-IVMT | Silicon Carbide | Type 01 | - | 66252941617 |
| 7 In. | 1-1/4 In. | 1 In. | 60 Grit | Medium Grit | Stock | 3600 | 39C60-IVMT | - | - | Green | 66252942666 |
| 7 in | 1-1/4 in | 1/4 in | 100 Grit | Fine | Stock | 3600 | 39C100-IVMT | Silicon Carbide | Type 01 | - | 66252940109 |
| 7 in | 1-1/4 in | 1/4 in | 80 Grit | Medium | Stock | 3600 | 39C80-JVMT | Silicon Carbide | Type 01 | - | 66252940007 |
| 6 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 4140 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66252836706 |
| 6 in | 1-1/4 in | 1/2 in | 80 Grit | Medium | Stock | 4140 | 39C80-IVMT | Silicon Carbide | Type 01 | - | 66252836816 |
| 6 in | 1-1/4 in | 1/2 in | 120 Grit | Fine | Stock | 4140 | 39C120-IVMT | Silicon Carbide | Type 01 | - | 66252836836 |
| 6 in | 1-1/4 in | 3/4 in | 60 Grit | Medium | Stock | 4140 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66252837584 |
| 6 in | 1-1/4 in | 3/4 in | 80 Grit | Medium | Stock | 4140 | 39C80-IVMT | Silicon Carbide | Type 01 | - | 66252837598 |
| 6 in | 1-1/4 in | 3/4 in | 100 Grit | Fine | Stock | 4140 | 39C100-IVMT | Silicon Carbide | Type 01 | - | 66252837717 |
| 6 in | 1-1/4 in | 1 in | 60 Grit | Medium | Stock | 4140 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66252838161 |
| 7 in | 1-1/4 in | 1 in | 80 Grit | Medium | Stock | 3600 | 39C80-IVMT | Silicon Carbide | Type 01 | - | 66252942413 |
| 7 in | 1-1/4 in | 1 in | 120 Grit | Fine | Stock | 3600 | 39C120-IVMT | Silicon Carbide | Type 01 | - | 66252942416 |
| 6 In. | 1-1/4 In. | 1/2 In. | 100 Grit | Fine Grit | Stock | 4140 | 39C100-IVMT | - | - | Green | 66252836827 |
| 8 in | 1-1/4 in | 1/2 in | 60 Grit | Medium | Stock | 3600 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66253044013 |
| 8 in | 1-1/4 in | 1/2 in | 100 Grit | Fine | Stock | 3600 | 39C100-IVMT | Silicon Carbide | Type 01 | - | 66253044017 |
| 8 in | 1-1/4 in | 3/4 in | 60 Grit | Medium | Stock | 3600 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253044312 |
| 8 in | 1-1/4 in | 3/4 in | 100 Grit | Fine | Stock | 3600 | 39C100-IVMT | Silicon Carbide | Type 01 | - | 66253044314 |
| 8 in | 1-1/4 in | 1 in | 100 Grit | Fine | Stock | 3600 | 39C100-IVMT | Silicon Carbide | Type 01 | - | 66253044379 |
| 8 in | 1-1/4 in | 1 in | 80 Grit | Medium | Stock | 3600 | 39C80-IVMT | Silicon Carbide | Type 01 | - | 66253044425 |
| 8 in | 1-1/4 in | 1 in | 60 Grit | Medium | Stock | 3600 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253044770 |
| 10 in | 3 in | 1 in | 60 Grit | Medium | Stock | 2485 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253160348 |
| 10 in | 2 in | 1-1/2 in | 60 Grit | Medium | Stock | 2485 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253161640 |
| 12 in | 5 in | 1 in | 60 Grit | Medium | Stock | 2070 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66253262884 |
| 12 in | 3 in | 1 in | 60 Grit | Medium | Stock | 2070 | 39C60-IVMT | Silicon Carbide | Type 01 | - | 66253262985 |
| 12 in | 5 in | 1 in | 80 Grit | Medium | Stock | 2070 | 39C80-JVMT | Silicon Carbide | Type 01 | - | 66253262988 |
| 14 in | 5 in | 1 in | 60 Grit | Medium | Stock | 1800 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253364206 |
| 14 in | 5 in | 1 in | 80 Grit | Medium | Stock | 1800 | 39C80-JVMT | Silicon Carbide | Type 01 | - | 66253364208 |
| 14 in | 5 in | 1-1/2 in | 60 Grit | Medium | Stock | 1800 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253364242 |
| 14 in | 5 in | 2 in | 60 Grit | Medium | Stock | 2320 | 39C60-JVMT | Silicon Carbide | Type 01 | - | 66253364322 |
| 8 in | 1-1/4 in | 1/4 in | 80 Grit | Medium | Stock | 3600 | 39C80-I8VMT | Silicon Carbide | Type 01 | - | 66253014526 |
| 8 in | 1-1/4 in | 1/2 in | 80 Grit | Medium | Stock | 3600 | 39C80-I8VMT | Silicon Carbide | Type 01 | - | 66253044015 |
| 8 in | 1-1/4 in | 3/4 in | 80 Grit | Medium | Stock | 3600 | 39C80-I8VMT | Silicon Carbide | Type 01 | - | 66253350645 |
| 8 in | 1-1/4 in | 3/8 in | 80 Grit | Medium | Stock | 3600 | 39C80-I8VMT | Silicon Carbide | Type 01 | - | 69936664144 |
Product Uses
Industries
Applications
Materials
